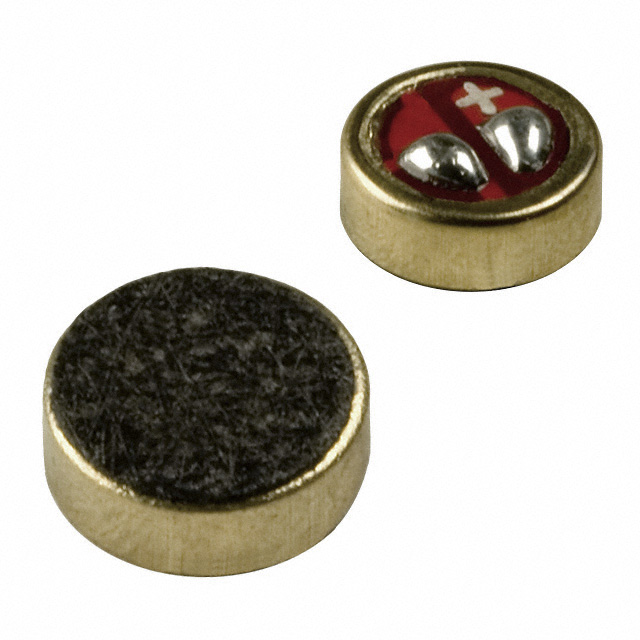

EM4015-46BC10&33: MIC OMNI DIRECT 4.0X1.5MM -46DB

EM4015-46BC10&33 Data Sheet

Get Latest Price

Part Number:: EM4015-46BC10&33
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

EM4005/4105 evaluate
DescriptionThe EM4005 (previously named H4005) is a CMOS integrated circuit intented for use in el...
EM4006 evaluate
Features: Operating frequency range 10 MHz to 15 MHz RF interface optimized for 13.56 MHz operati...
EM4011-52FC10&33 evaluate
MIC OMNI DIRECT 4.0X1.1MM -52DB

Product Details

Quick Details

Series:	-	Manufacturer:	Horn Industrial Co LTD
Type:	Electret Condenser	Output Type:	Analog
Direction:	Omnidirectional	Operating Supply Voltage :	2.6 V to 3.6 V
Frequency Range:	-	Sensitivity:	-46dB ±4dB
S/N Ratio:	58dB	Impedance:	2.2 kOhm
Voltage - Rated:	-	Current - Supply:	500µA
Port Location:	Top	Seal Rating:	None
Termination:	Solder Pads	Size / Dimension:	4.00mm Dia
Height (Max):	1.80mm	Shape:	Circular

Description

Series: -
Type: Electret Condenser
Output Type: Analog
Direction: Omnidirectional
Impedance: 2.2 kOhm
Current - Supply: 500µA
Port Location: Top
Seal Rating: None
Shape: Circular
Packaging: Bulk
S/N Ratio: 58dB
Termination: Solder Pads
Size / Dimension: 4.00mm Dia
Frequency Range: -
Height (Max): 1.80mm
Voltage - Rated: -
Sensitivity: -46dB ±4dB
Manufacturer: Horn Industrial Co LTD

Parameters:

Technical/Catalog Information	EM4015-46BC10&33
Vendor	Horn Industrial Co LTD
Category	Audio Products
Sensitivity	-46dB ±4dB
Voltage - Rated	2V
Current	500A
Type	Electret Condenser
Size / Dimension	Circular - 4mm Dia x 1.5mm H
Frequency	100Hz ~ 10kHz
S/N Ratio	58dB
Filter Type	10pF and 33pF
Impedance	2.2K Ohm
Termination	Solder Pads
Direction	Omnidirectional
Port Location	Top
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	EM4015 46BC10&33 EM401546BC10&33 359 1036 ND 3591036ND 359-1036
