Product Details

Description



Features:

• 5 MSPS maximum conversion speed
• High resolution up to 10 bit
• Built-in sampling and hold circuit
• Internal self-bias reference voltage
• 115 mW low power dissipation at 5MSPS
• +5V single power supply
• Available in 24 pin SOP
• Series
    EM19110M for 300 mil SOP


Application

Precision scanner, digital cellular phone and a wide range of fields where high speed and high resolution A/D conversion is required in the digital communication.

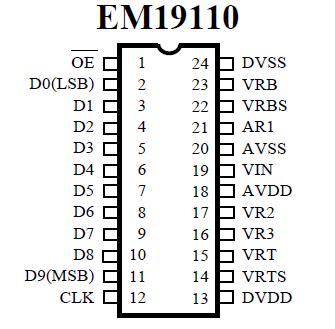

Pinout

Connection Diagram


Specifications

Items
Sym.
Rating
Unit
Supply voltage
VDD
7
V
Analog input voltage
VIN
VSS to VDD
V
Reference input voltage
VRT,VRB
VSS to VDD
V
Operating temperature
TOPR
-20 to 65
°C



Description

EM19110 is a 10-bit, 5 MHZ CMOS A/D converter for high speed and high resolution use. The 2-step parallel structures accompanying with an average technique that external generated reference voltage, the users can tune transfer curve to meet their application.
