EM10Q-100

Features: · ESD Protection > 25 kilovolts· Bidirectional EMI Filtering/TVS Low Pass Filters· Low Insertion Loss: -3db Roll-Off @ 150MHz· Protects Up to Ten(10) Data Lines· RoHS Compliant on Lead-Free VersionsApplication· LCD Displays· Cellular Phones· Notebooks· Personal Digital Assist...

product image

EM10Q-100 Picture
See larger image
SeekIC No. : 004335859 Detail

EM10Q-100: Features: · ESD Protection > 25 kilovolts· Bidirectional EMI Filtering/TVS Low Pass Filters· Low Insertion Loss: -3db Roll-Off @ 150MHz· Protects Up to Ten(10) Data Lines· RoHS Compliant on ...

EM10Q-100 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EM10Q-100
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· ESD Protection > 25 kilovolts
· Bidirectional EMI Filtering/TVS Low Pass Filters
· Low Insertion Loss: -3db Roll-Off @ 150MHz
· Protects Up to Ten(10) Data Lines
· RoHS Compliant on Lead-Free Versions


Application

· LCD Displays
· Cellular Phones
· Notebooks
· Personal Digital Assistant (PDA)
· Ground Positioning System (GPS)
· SMART Cards

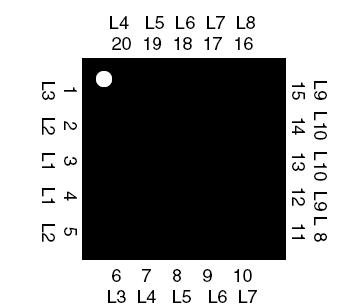

Pinout

Connection Diagram


Specifications

PARAMETER SYMBOL VALUE UNITS
Operating Temperature TJ -40°C to 85°C °C
Storage Temperature TSTG -55°C to 150° °C
DC Power Per Resistor P 100 mW
Typical Resistance @ ± 15% R 100 OHMS
Soldering Temperature for 10 seconds TL 265°C °C
