SeekIC No. : 003461265 Detail

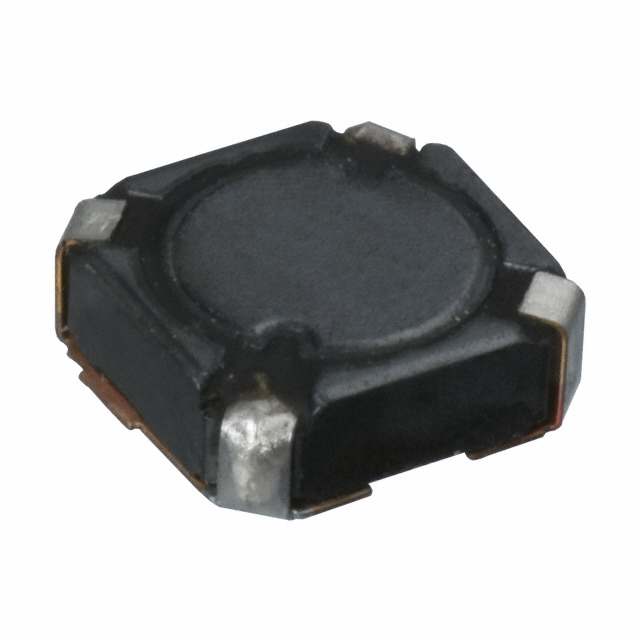

ELL-5PM6R8N: CHOKE COIL 6.8UH 1200MA SMD

ELL-5PM6R8N Data Sheet

Get Latest Price

Part Number:: ELL-5PM6R8N
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/7/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

ELL-3GM100M evaluate
COIL PWR CHOKE 10UH 550MA SMD
ELL-3GM120M evaluate
COIL PWR CHOKE 12UH 530MA SMD
ELL-3GM150M evaluate
COIL PWR CHOKE 15UH 440MA SMD

Product Details

Quick Details

Series:	M	Manufacturer:	Panasonic Electronic Components
Inductance:	6.8µH	Current:	1.2A
Common Mode Rejection Ratio (Min) :	58 dB	Current - Saturation:	-
Current - Temperature Rise:	-	Type:	-
Tolerance:	±30%	Shielding:	Shielded
DC Resistance (DCR):	74 mOhm	Q @ Freq:	-
Frequency - Self Resonant:	-	Material - Core:	-
Package / Case:	0.204" L x 0.204" W x 0.078" H (5.20mm x 5.20mm x 2.00mm)	Mounting Type:	Surface Mount

Description

Current - Saturation: -
Current - Temperature Rise: -
Material - Core: -
Mounting Type: Surface Mount
Q @ Freq: -
Type: -
Manufacturer: Panasonic Electronic Components
Shielding: Shielded
Inductance: 6.8µH
Current: 1.2A
Frequency - Self Resonant: -
Tolerance: ±30%
Packaging: Cut Tape (CT)
DC Resistance (DCR): 74 mOhm
Series: M
Package / Case: 0.204" L x 0.204" W x 0.078" H (5.20mm x 5.20mm x 2.00mm)

Parameters:

Technical/Catalog Information	ELL-5PM6R8N
Vendor	Panasonic - ECG (VA)
Category	Inductors, Coils, Chokes
Inductance	6.8H
Tolerance	±30%
Package / Case	0.204" L x 0.204" W x 0.078" H (5.20mm x 5.20mm x 2.00mm)
Packaging	Digi-Reel?
Type	-
Current	1.2A
Mounting Type	Surface Mount
Q @ Freq	-
Self Resonant Freq	-
DC Resistance (DCR)	74.00 mOhm Max
Shielding	Shielded
Applications	Power Supplies
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ELL 5PM6R8N ELL5PM6R8N PCD2093DKR ND PCD2093DKRND PCD2093DKR
