EL9200

Features:

• 128 step adjustable sink current
• EEPROM memory
• 2-pin adjustment and disable
• Single, dual or quad amplifiers
- 44MHz bandwidth
- 80V/s slew rate
- 60mA continuous output
- 180mA peak output
• Up to 18V operation
• 2.6V to 3.6V logic control
• Pb-free available (RoHS compliant)




Application

• TFT-LCD VCOM supplies for
- LCD-TVs
- LCD monitors




Specifications

V_S⁺ Supply Voltage between VS+ and GND . . . . . . . . . . . . . . 18V
Supply Voltage between VSD and GND . . . . . . . . . . . . . . . . . . . . 4V
Maximum Continuous Output Current . . . . . . . . . . . . . . . . . . . 65mA
Input Voltages to GND
SET, CE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to +4V
CTL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to +16V
Output Voltages to GND
OUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-0.3V to +20V
A_VDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to +20V
ESD Rating - HBM for Device . . . . . . . . . . . . . . . . . . . . . . . . . . . 2kV
Ambient Operating Temperature . . . . . . . . . . . . . .-40°C to +85°C
Maximum Die Temperature . . . . . . . . . . . . . . . . . . . . . . . . . +150°C
Storage Temperature . . . . . . . . . . . . . . . . . . . . . -65°C to +150°C
Maximum Lead Temperature (Soldering 10s) . . . . . . . . . . . +300°C

CAUTION: Stresses above those listed in "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied.




Description

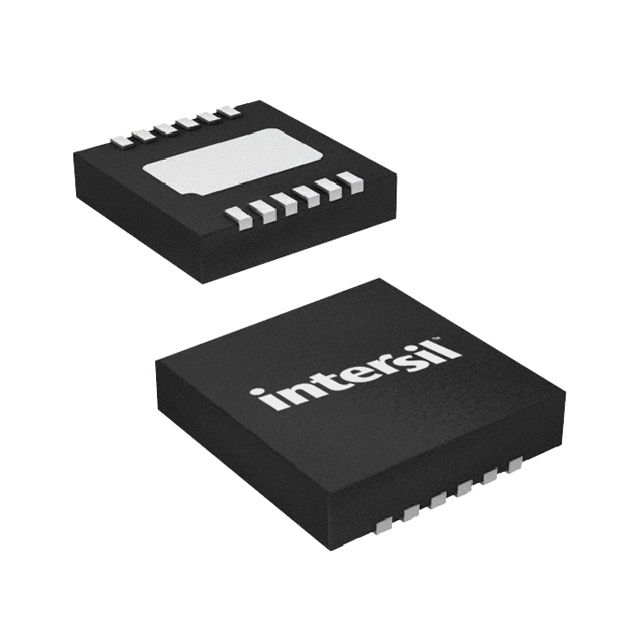

The EL9200, EL9201, and EL9202 represent programmable VCOM amplifiers for use in TFT-LCD displays. Featuring 1, 2, and 4 channels of VCOM amplification, respectively, each device features just a single programmable current source for adding offset to one VCOM output. This current source is programmable using a single wire interface to one of 128 levels. The value is stored on an internal EEPROM memory. The EL9200 is available in the 12-pin DFN package and the EL9201 and EL9202 are available in 24-pin QFN packages. All are specified for operation over the -40C to +85C temperature range.
