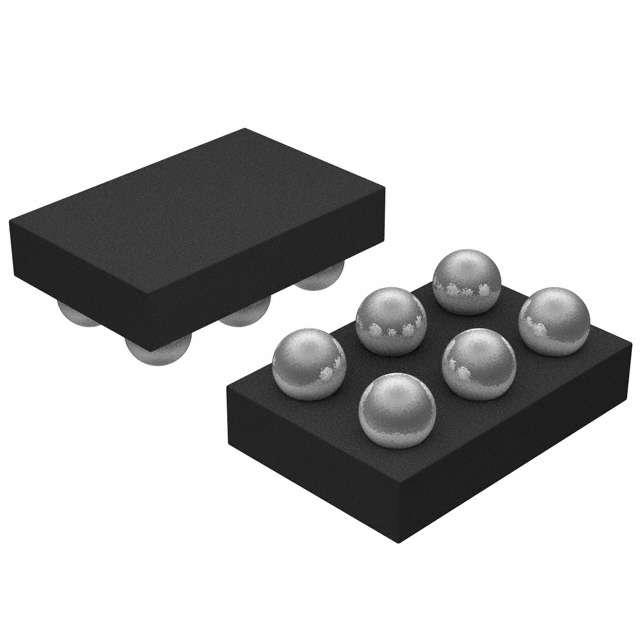

See larger image

SeekIC No. : 003532269 Detail

EL8176FIZ-T7: IC OP AMP SGL RRIO PREC 6-WLCSP

EL8176FIZ-T7 Data Sheet

Get Latest Price

Part Number:: EL8176FIZ-T7
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/7/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

EL8100 evaluate
Features: • 200MHz -3dB bandwidth• 200V/s slew rate• Low supply current = 2mA...
EL8100IS evaluate
Operational Amplifiers - Op Amps 200MHZ R-R
EL8100IS-T13 evaluate
IC AMP SGL R-R 200MHZ 8-SOIC

Product Details

Quick Details

Series:	-	Manufacturer:	Intersil
Amplifier Type:	General Purpose	Type:	-
Number of Circuits:	1	Max Output Power x Channels @ Load:	-
THD plus Noise :	0.001 %	Output Type:	Rail-to-Rail
Slew Rate:	0.13 V/µs	Voltage - Supply:	-
Features:	-	Gain Bandwidth Product:	400kHz
-3db Bandwidth:	1MHz	Current - Input Bias:	500pA
Voltage - Input Offset:	75µV	Current - Supply:	85µA
Current - Output / Channel:	31mA	Voltage - Supply, Single/Dual (±):	2.4 V ~ 5.5 V, ±1.2 V ~ 2.75 V
Operating Temperature:	-40°C ~ 125°C	Mounting Type:	Surface Mount
Package / Case:	6-UFBGA, WLCSP	Supplier Device Package:	6-WLCSP (3x2)

Description

Series: -
Amplifier Type: General Purpose
Type: -
Max Output Power x Channels @ Load: -
Voltage - Supply: -
Features: -
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C
Number of Circuits: 1
Output Type: Rail-to-Rail
Current - Supply: 85µA
Packaging: Cut Tape (CT)
Voltage - Supply, Single/Dual (±): 2.4 V ~ 5.5 V, ±1.2 V ~ 2.75 V
Current - Input Bias: 500pA
Voltage - Input Offset: 75µV
Slew Rate: 0.13 V/µs
-3db Bandwidth: 1MHz
Gain Bandwidth Product: 400kHz
Manufacturer: Intersil
Current - Output / Channel: 31mA
Package / Case: 6-UFBGA, WLCSP
Supplier Device Package: 6-WLCSP (3x2)

Parameters:

Technical/Catalog Information	EL8176FIZ-T7
Vendor	Intersil
Category	Integrated Circuits (ICs)
Packaging	Tape & Reel (TR)
Amplifier Type	General Purpose
Number of Circuits	1 - Single
Package / Case	6-WLCSP
Slew Rate	0.13 V/s
Gain Bandwidth Product	400kHz
Current - Supply	85A
Current - Output / Channel	31mA
Voltage - Supply, Single/Dual (±)	2.4 V ~ 5.5 V, ±1.2 V ~ 2.75 V
Output Type	Rail-to-Rail
-3db Bandwidth	1MHz
Current - Input Bias	500pA
Operating Temperature	-40°C ~ 125°C
Voltage - Input Offset	75V
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	EL8176FIZ T7 EL8176FIZT7 EL8176FIZ T7TR ND EL8176FIZT7TRND EL8176FIZ-T7TR
