EL7584

Features: •TFT - LCD display supply- Boost regulator- VCOM buffer- VON charge pump- VOFF charge pump•2V to 14V VIN supply•5V < VBOOST < 17V•2V < VCOM < 13V•5V < VON < 40V• - 40V < VOFF < 0V•VBOOST = 15V @ 370mA•High frequency,...

product image

EL7584 Picture
See larger image
SeekIC No. : 004335681 Detail

EL7584: Features: •TFT - LCD display supply- Boost regulator- VCOM buffer- VON charge pump- VOFF charge pump•2V to 14V VIN supply•5V < VBOOST < 17V•2V < VCOM < 13V•...

EL7584 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EL7584
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•TFT - LCD display supply
- Boost regulator
- VCOM buffer
- VON charge pump
- VOFF charge pump
•2V to 14V VIN supply
•5V < VBOOST < 17V
•2V < VCOM < 13V
•5V < VON < 40V
• - 40V < VOFF < 0V
•VBOOST = 15V @ 370mA
•High frequency, small inductor DC/DC boost circuit
•Over 90% efficient DC/DC boost converter capability
•Built - in power - up sequence with adjustable VON delay
•Adjustable frequency
•Adjustable soft- start
•Adjustable outputs
•Over - temperature protection
•Small parts count
•Pb - free available (RoHS compliant)




Application

•TFT-LCD panels
•PDAs

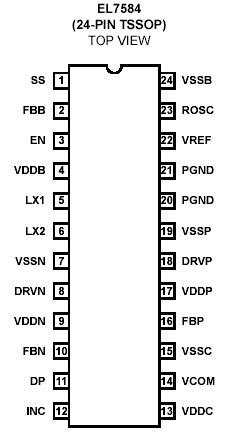

Pinout






Specifications

LX Pin Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18V
VDDB, VDDP, VDDN.. . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . 18V
VDDC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16.5V
Maximum Continuous VBOOST Output Current. . . . . . . . . . . 800mA
Storage Temperature. . . . . . . . . . . . . . . . . . . . . . . .-65 to +150
Ambient Operating Temperature . . . . . . . . . . . . . . . .-40 to +85
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See Curves





Description

The EL7584 is a 4-channel DC/DC converter IC which is designed primarily for use in TFT-LCD applications. The boost converter has 2V to 14V input capability and provides 5V to 17V output, which powers the column drivers and provides up to 370mA @ 15V. A pair of charge pump control circuits provide outputs to allow the external generation of VON and VOFF supplies at 5V to 40V and 0V to -40V, respectively, each at up to 60mA for VBOOST = 15V. The VCOM buffer provides up to 50mA continuous output current from 2V to 13V.

The EL7584 features adjustable switching frequency and on-chip power sequence to simplify start-up operation. A separate input is available to externally increase the default delay of the positive charge pump. An over-temperature feature is provided to allow the IC to be automatically protected from excessive power dissipation.

The EL7584 is available in a 24-pin TSSOP package and is specified for operation over the full -40 to +85 temperature range.
