Features:

• Pentium® II Compatible
• 5 bit DAC Controlled Output Voltage
• Greater than 90% Efficiency
• 4.5V to 12.6V Input Range
• Dual NMOS Power FET Drivers
• Fixed frequency, Current Mode Control
• Adjustable Oscillator with External Sync. Capability
• Synchronous Switching
• Internal Soft-Start
• User Adjustable Slope Compensation
• Pulse by Pulse Current Limiting
• 1% Typical Output Accuracy
• Power Good Signal
• Output Power Down
• Over Voltage Protection
• Pb-Free Available (RoHS Compliant)



Application

• Pentium® II Voltage Regulation Modules (VRMs)
• PC Motherboards
• DC/DC Converters
• GTL Bus Termination
• Secondary Regulation



Pinout

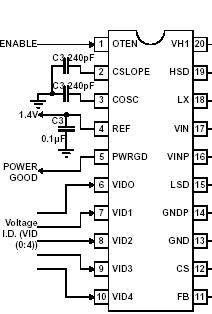

  Connection Diagram


Specifications

Supply Voltage: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5V to 14V
Input Pin Voltage:. . . . . . . . -0.03 below Ground, +0.3 above Supply
VHI. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5V to 27V
Storage Temperature Range:. . . . . . . . . . . . . . . .  . 65°C to +150°C
Operating Temperature Range: . . . . . . . . . . . . . . .  . . 0°C to +70°C
Operating Junction Temperature:. . . . . . . . . . . . . . . . .  . . . . . 125°C
Peak Output Current: . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . .3A
Power Dissipation: . . . . . . . . . . . . . . . . . . . . . . . . . . . .SO20 500mW

CAUTION: Stresses above those listed in "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied.




Description

The EL7571 is a fixed frequency, current mode, pulse width modulated (PWM) controller with an integrated high precision reference and a 5 bit Digital-to-Analog Converter (DAC). The device incorporates all the active circuitry required to implement a synchronous step down (buck) converter which conforms to the Intel Pentium® II VRM specification. Complementary switching outputs are provided to drive dual NMOS power FET's in either synchronous or non-synchronous configurations, enabling the user to realize a variety of high efficiency and low cost converters.
