EL5724

Features:

4 x gamma buffers (EL5524)
6 x gamma buffers (EL5624)
8 x gamma buffers (EL5724)
10 x gamma buffers (EL5824)
Single V_COM amplifier
140mA max V_COM output current
Low power
-5.4mA (EL5524)
-6.8mA (EL5624)
-8.3mA (EL5724)
-9.5mA (EL5824)
Pb-Free plus Anneal available (RoHS compliant)




Application

TFT-LCD displays
Flat panel monitors
Notebook displays
LCD-TVs

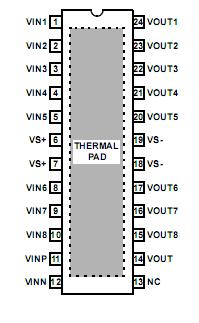

Pinout

Specifications

Absolute Maximum Ratings (T_A = 25)
Supply Voltage between V_S + and V_S -. . . .. .. . . . . +18V
Input Voltage . . . . . . . . . . . . . . . .. .V_S- -0.5V, V_S+ +0.5V
Maximum Continuous Output Current (Buffer). . . . 30mA
Maximum Continuous Output Current (V_COM). . . . . 60mA
Power Dissipation . . . . . . . . . . . . . . . . . . . . .See Curves
Maximum Die Temperature . . . . . . . . . . . . . . . . . .+125
Storage Temperature. . . . . . . . . . . . . . . .-65 to +150
Operating Conditions. . . . . . . . . . . . . . . . .-40 to +85

Description

The EL5524, EL5624, EL5724, and EL5824 integrate a number of gamma reference buffers with a single VCOM amplifier. The EL5524 contains 4 gamma buffers, the EL5624 contains 6, the EL5724 contains 8, and the EL5824 contains 10. Each gamma buffer has a bandwidth of 12MHz and features a slew rate of 15V/s. The output current is rated at 30mA continuous, 140mA peak. The VCOM amplifiers are rated for 60mA continuous output current and 200mA peak. They also feature higher slew rate and bandwidth for use in error cancellation circuits. The EL5524 is available in the 14-pin HTSSOP package, the EL5624 in the 20-pin HTSSOP package, the EL5724 in the 24-pin HTSSOP package, and the EL5824 in the 28-pin HTSSOP package. All are specified for operation over the -40C to +85C temperature range.
