EL5525

Features:

·18-channel reference outputs
·Accuracy of !à0.1
·Supply voltage of 4.5V to 16.5V
·Digital supply 3.3V to 5V
·Low supply current of 15mA
·Rail-to-rail capability
·Internal thermal protection
·Pb-Free plus anneal available (RoHS compliant)




Application

·TFT-LCD drive circuits
·Reference voltage generators

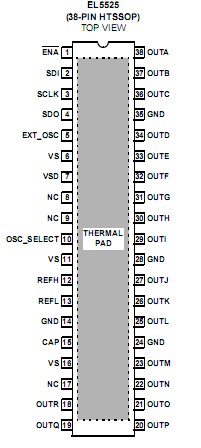

Pinout






Specifications

Supply Voltage between VS and GND. . . . . .4.5V(min) to 18V(max)
Supply Voltage between VSD and GND 3V(min) to V_S and +7(max)
Maximum Continuous Output Current. . . . . . . . . . . . . . . . . . . 30mA
Ambient Operating Temperature . . . . . . . . . . . . . . . .-40 to +85
Maximum Die Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . .125
Storage Temperature. . . . . . . . . . . . . . . . . . . . . . . .-65 to +150

Description

The EL5525 is designed to produce the reference voltages required in TFT-LCD applications. Each output is programmed to the required voltage with 10 bits of resolution. Reference pins determine the high and low voltages of the output range, which are capable of swinging to either supply rail. Programming of each output is performed using the serial interface. A serial out pin enables daisy chaining of multiple devices. A number of the EL5525 can be stacked for applications requiring more than 18 outputs. The reference inputs can be tied to the rails, enabling each part to output the full voltage range, or alternatively, they can be connected to external resistors to split the output range and enable finer resolutions of the outputs. The EL5525 has 18 outputs and comes in a 38-pin HTSSOP package. It is specified for operation over the full -40oC to +85oC temperature range.
