EL5424

Features:

8, 10, and 12 channel versions
12MHz -3dB buffer bandwidth
150mA V_COM buffer
Operating supply voltage from 4.5V to 16.5V
Low supply current - 6mA total (8-channel version)
Rail-to-rail input/output swing (buffers only)
QFN package - just 0.9mm high
Pb-Free available (RoHS compliant)




Application

TFT-LCD column driver buffering and V_COM supply
Electronics notebooks
Computer monitors
Electronics games
Touch-screen displays
Portable instrumentation

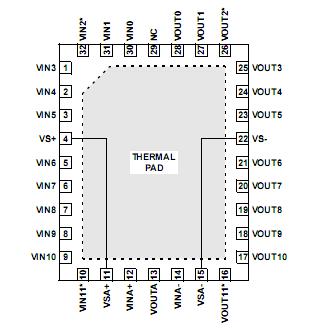

Pinout

Specifications

Supply Voltage between V_S+ and V_S -. . . . . . . . . . . . . . .+18V
Input Voltage . . . . . . . . . . . . . . . . . . .. .V_S- -0.5V, V_S + +0.5V
Maximum Continuous Output Current (V_OUT0-9) . . . . . . .30mA
Maximum Continuous Output Current (V_OUTA). . . . . . . .150mA
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . See Curves
Maximum Die Temperature . . . . . . . . . . . . . . .. . . . . . . .+125
Storage Temperature. . . . . . . . . . . . . . . . . . . . .-65 to +150
Ambient Operating Temperature . . . . . . . . . . .. .-40 to +85






Description

The EL5224, EL5324, and EL5424 feature 8, 10, and 12 low power buffers, respectively, and one high power output amplifier. They are designed primarily for buffering column driver reference voltages in TFT-LCD applications as well as generation of the VCOM supply. Each low power buffer features a -3dB bandwidth of 12MHz and features rail-to-rail input/output capability. The high power buffer can drive 100mA and swings to within 2V of each rail. The 8-channel EL5224 is available in 24-pin QFN and 24-pin HTSSOP packages, the 10-channel EL5324 is available in 32-pin QFN and 28-pin HTSSOP packages, and the 12-channel EL5424 is available in the 32-pin QFN package. They are specified for operation over the full -40C to +85C temperature range.
