EL5193C

Features:

• 300MHz -3dB bandwidth
• 4mA supply current
• Single and dual supply operation,from 5V to 10V supply span
• Available in 5-pin SOT23 package
• Dual (EL5293C) and triple (EL5393C) available
• High speed, 1GHz product available (EL5193C)
• High speed, 6mA, 600MHz product available (EL5192C,EL5292C, and EL5392C


Application

• Battery Powered Equipment
• Hand Held, Portable Devices
• Video Amplifiers
• Cable Drivers
• RGB Amplifiers
• Test Equipment
• Instrumentation
• Current to Voltage Converters

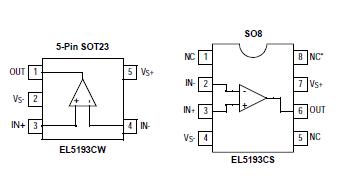

Pinout




Specifications

Values beyond absolute maximum ratings can cause the device to be prematurely damaged. Absolute maximum ratings are stress ratings only and functional device operation is not implied.
Supply Voltage between V_S+ and V_S-                                 11V
Maximum Continuous Output Current                              50mA
Operating Junction Temperature                                   125°C
Power Dissipation                                                   See Curves
Pin Voltages                                         V_S- - 0.5V to V_S+ +0.5V
Storage Temperature                                  -65°C to +150°C
Operating Temperature                                 -40°C to +85°C


Description

The EL5193C is a current feedback amplifier with a bandwidth of 300MHz. This makes these amplifiers ideal for today's high speed video and monitor applications.

With a supply current of just 4mA and the ability to run from a single supply voltage from 5V to 10V, these amplifiers are also ideal for hand held, portable or battery-powered equipment.
