EL5193A

Features:

•300MHz -3dB bandwidth
•4mA supply current
•Single and dual supply operation, from 5V to 10V supply span
• Fast enable/disable (EL5193A only)
•Available in SOT-23 packages
•Dual (EL5293) and triple (EL5393) available
•High speed, 1GHz product available (EL5193)
•High speed, 6mA, 600MHz product available (EL5192, EL5292, and EL5392)

Application

•Battery powered equipment
•Hand held, portable devices
•Video amplifiers
•Cable drivers
•RGB amplifiers
•Test equipment
•Instrumentation
•Current to voltage converters

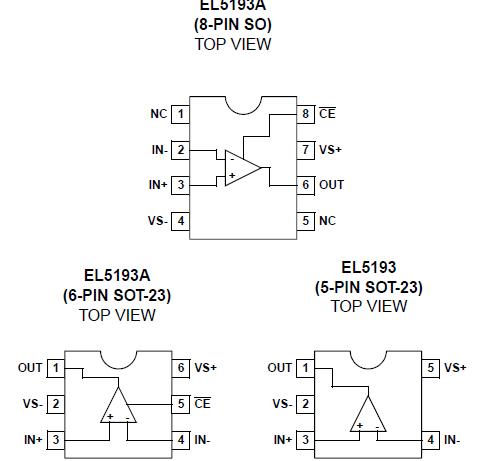

Pinout






Specifications

Supply Voltage between VS+ and VS- . . . . . . . . . . . . . . .11V
Maximum Continuous Output Current . . . . . . . . . . . . . . 50mA
Operating Junction Temperature . . . . . . . . . . . . . . . . ..125°C
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . See Curves
Pin Voltages. . . . . . . . . . . . . . . . . . . . ..VS- -0.5V to VS+ +0.5V
Storage Temperature . . . . . . . . . . . . . . . . . -65°C to +150°C
Ambient Operating Temperature . . . . . . . . . .-40°C to +85°C




Description

The EL5193 and EL5193A are current feedback amplifiers with a bandwidth of 300MHz. This makes these amplifiers ideal for todays high speed video and monitor applications. With a supply current of just 4mA and the ability to run from a single supply voltage from 5V to 10V, these amplifiers are also ideal for hand held, portable or battery-powered equipment. The EL5193A also incorporates an enable and disable function to reduce the supply current to 100A typical per amplifier. Allowing the CE pin to float or applying a low logic level will enable the amplifier. The EL5193 is offered in the 5 Ld SOT-23 package and the EL5193A is available in the 6 Ld SOT-23 as well as the industry-standard 8 Ld SOIC packages. Both operate over the industrial temperature range of -40C to +85C.
