EL5167

Features: • Gain-of-1 bandwidth = 1.4GHz/gain-of-2 bandwidth=800MHz• 6000V/µs slew rate• Single and dual supply operation from 5V to 12V• Low noise = 1.5nV/Hz• 8.5mA supply current• Fast enable/disable (EL5166 only)• 600MHz family - (EL5164 and EL516...

product image

EL5167 Picture
See larger image
SeekIC No. : 004335342 Detail

EL5167: Features: • Gain-of-1 bandwidth = 1.4GHz/gain-of-2 bandwidth=800MHz• 6000V/µs slew rate• Single and dual supply operation from 5V to 12V• Low noise = 1.5nV/Hz• 8....

EL5167 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EL5167
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Gain-of-1 bandwidth = 1.4GHz/gain-of-2
bandwidth=800MHz
• 6000V/µs slew rate
• Single and dual supply operation from 5V to 12V
• Low noise = 1.5nV/Hz
• 8.5mA supply current
• Fast enable/disable (EL5166 only)
• 600MHz family - (EL5164 and EL5165)
• 400MHz family - (EL5162 and EL5163)
• 200MHz family - (EL5160 and EL5161)
• Pb-Free Available (RoHS Compliant)




Application

•Video amplifiers

•Cable drivers

•RGB amplifiers

•Test equipment

•Instrumentation

•Current to voltage converters




Pinout

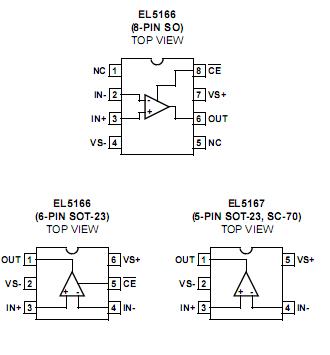

Connection Diagram




Specifications

Supply Voltage between VS+ and VS-. . . . . . . . . . . . . . . . . . . .12.6V
Maximum Continuous Output Current. . . . . . . . . . . . . . . . . . . . 50mA
IOUT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±200mA
I into VIN+, VIN-, Enable Pins . . . . . . . . . . . . . . . . . . . . . . . . . . ±4mA
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .See Curves
Pin Voltages. . . . . . . . . . . . . . . . . . . . . . . . . . .VS- -0.5V to VS+ +0.5V
Storage Temperature. . . . . . . . . . . . . . . . . . . . . . . .- 65°C to +150°C
Ambient Operating Temperature . . . . . . . . . . . . . . . . -40°C to +85°C
Die Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125°C




Description

The EL5166 and EL5167 amplifiers are of the current feedback variety and exhibit a very high bandwidth of 1.4GHz at AV = +1 and 800MHz at AV = +2. This makes these amplifiers ideal for today's high speed video and monitor applications, as well as a number of RF and IF frequency designs. With a supply current of just 8.5mA and the ability to run from a single supply voltage from 5V to 12V, these amplifiers EL5166 and EL5167 offer very high performance for little power consumption. The EL5166 also incorporates an enable and disable function to reduce the supply current to 13A typical per amplifier. Allowing the CE pin to float or applying a low logic level will enable the amplifier. The EL5167 is offered in the 5 Ld SOT-23 package and the EL5166 is available in the 6 Ld SOT-23 as well as the industry-standard 8 Ld SOIC packages. Both operate over the industrial temperature range of -40C to +85C.
