EL5152

Features: * 270MHz -3dB bandwidth* 180V/s slew rate* ±1mV maximum VOS* Very high open loop gains 50kV/V* Low supply current = 3mA* 105mA output current* Single supplies from 5V to 12V* Dual supplies from ±2.5V to ±5V* Fast disable on the EL5152 and EL5252* Low cost* Pb-Free available (RoHS complia...

product image

EL5152 Picture
See larger image
SeekIC No. : 004335331 Detail

EL5152: Features: * 270MHz -3dB bandwidth* 180V/s slew rate* ±1mV maximum VOS* Very high open loop gains 50kV/V* Low supply current = 3mA* 105mA output current* Single supplies from 5V to 12V* Dual supplies...

EL5152 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EL5152
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* 270MHz -3dB bandwidth
* 180V/s slew rate
* ±1mV maximum VOS
* Very high open loop gains 50kV/V
* Low supply current = 3mA
* 105mA output current
* Single supplies from 5V to 12V
* Dual supplies from ±2.5V to ±5V
* Fast disable on the EL5152 and EL5252
* Low cost
* Pb-Free available (RoHS compliant)




Application

* Imaging
* Instrumentation
* Video
* Communications devices




Pinout

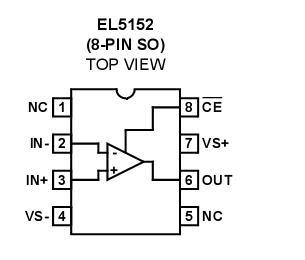

Connection Diagram




Specifications

Supply Voltage between VSand GND. . . . . . . . . . . . . . . . . . . 13.2V
Maximum Continuous Output Current. . . . . . . . . . . . . . . . . . . 50mA
Pin Voltages. . . . . . . . . . . . . . . . . . . . . . . . .GND -0.5V to VS +0.5V
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See Curves
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+125°C
Storage Temperature. . . . . . . . . . . . . . . . . . . . . -65°C to +150°C
Ambient Operating Temperature . . . . . . . . . . . . . -40°C to +85°C
Current into IN +, IN -, CE . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5mA





Description

The EL5152, EL5153, EL5252, and EL5455 are 300MHz bandwidth -3dB voltage mode feedback amplifiers with DC accuracy of < 0.01%, 1mV offsets and 50kV/V open loop gains. These amplifiers are ideally suited for applications ranging from precision measurement instrumentation to high-speed video and monitor applications demanding higher linearity at higher frequency. Capable of operating with as little as 3.0mA of current from a single supply ranging from 5V to 12V dual supplies ranging from ±2.5V to ±5.0V these amplifiers are also well suited for handheld, portable and battery-powered equipment.

Single amplifiers are offered in SOT-23 packages and duals n a 10-pin MSOP package for applications where board space is critical. Quad amplifiers are available in a 14-pin SO package. Additionally, singles and duals are available in the ndustry-standard 8-pin SO. EL5152, EL5153, EL5252, and EL5455 All parts operate over the ndustrial temperature range of -40°C to +85°C.
