EL5126

Features:

* 8-channel reference outputs
* Accuracy of ±0.1%
* Supply voltage of 4.5V to 16.5V
* Digital supply 3.3V to 5V
* Low supply current of 10mA
* Rail-to-rail capability
* I²C control interface




Application

* TFT-LCD drive circuits
* Reference voltage generators

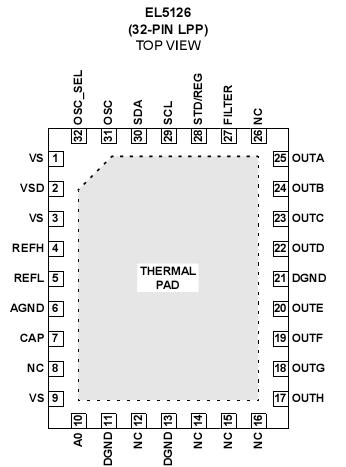

Pinout






Specifications

Supply Voltage between V_S and GND. . . . . . . . . . . . . . . . . . . .+18V
Supply Voltage between V_SD and GND . . . . . . . . . . . . . . . . . . .+7V
Maximum Continuous Output Current. . . . . . . . . . . . . . . . . . . .30mA
Maximum Die Temperature . . . . . . . . . . . . . . . . . . . . . . . . . +125°C
Storage Temperature. . . . . . . . . . . . . . . . . . . . . .-65°C to +150°C
Operating Temperature . . . . . . . . . . . . . . . . . . . . .-40°C to +85°C
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See Curves




Description

The EL5126 is designed to produce the reference voltages required in TFT-LCD applications. Each output is programmed to the required voltage with 10 bits of resolution. Reference pins determine the high and low voltages of the output range, which are capable of swinging to either supply rail. Programming of each output is performed using the serial interface.

A number of the EL5126 can be stacked for applications requiring more than 8 outputs. The reference inputs can be tied to the rails, enabling each part to output the full voltage range, or alternatively, they can be connected to external resistors to split the output range and enable finer resolutions of the outputs.

The EL5126 has 8 outputs and is available in a 32-pin LPP package. It is specified for operation over the full -40°C to +85°C temperature range.

The EL5126 is designed to produce the reference voltages required in TFT-LCD applications. Each output is programmed to the required voltage with 10 bits of resolution. Reference pins determine the high and low voltages of the output range, which are capable of swinging to either supply rail. Programming of each output is performed using the serial interface. A number of the EL5126 can be stacked for applications requiring more than 8 outputs. The reference inputs can be tied to the rails, enabling each part to output the full voltage range, or alternatively, they can be connected to external resistors to split the output range and enable finer resolutions of the outputs. The EL5126 has 8 outputs and is available in a 32-pin LPP package. It is specified for operation over the full -40C to +85C temperature range.
