EL5000A

Features:

• 3.3V logic supply
• 40V V_ON output high level
• -30V V_OFF output low level
• 166kHz input logic frequency
• 100mA output peak current
• 10mA output continuous current
• TTL-compatible logic input
• Pb-free plus anneal available (RoHS compliant)

Application

• TFT-LCD panels

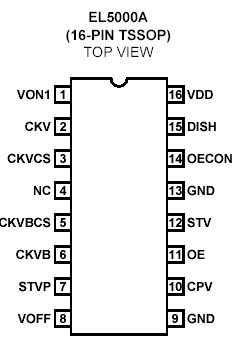

Pinout






Specifications

VDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.5V
V_ON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44V
V_OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -33V
V_CL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.5V
V_CKV, V_CKVB, V_STVP,
V_CKVCS, V_CKVBCS, V_STVP. . . . . . . .V_ON + 1 diode/V_OFF - 1 diode
V_CPV, V_OE, V_STV, V_OECON . . . . . . . V_DD + 1 diode/GND - 1 diode
V_DISH . . . . . . . . . . . . . . . . . . . . . . . G_ND + 1 diode/V_OFF - 1 diode
I_{OUT (peak)} . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100mA
I_{OUT (continuos),} CKV, CKVB, or STVP . . . . . . . . . . . . . . . . .30mA
I_{OUT (continuous, total)} . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50mA
T_AMBIENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -20°C to +85°C
T_JUNCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..-20°C to +150°C
T_STORAGE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..-65°C to +150°C
P_DISSIPATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See Curves
Maximum Power Dissipation . . . . . . . . . . . . . . . . . . . .. See Curves




Description

The EL5000A is high voltage TFT-LCD logic driver with+40V and -30V output swing capability. Manufactured using the Intersil proprietary monolithic high voltage bipolar
process, it is capable of delivering 100mA output peak current into 5nF of capacitive load. To simplify external circuitry, the EL5000A integrates additional logic circuits.

The EL5000A can operate on 3.3V logic supply and high voltage -30V to +40V output supplies. The EL5000A is available in TSSOP-16 package. It is specified for operation over the -20°C to +85°C extended temperature range.
