Features: • Complete variable-gain amplifier complete with output amplifier• Compensated for Gain 10• 50MHz signal bandwidth• 50MHz gain-control bandwidth• Low 29nV/Hz input noise• Operates on ±5V to ±15V supplies• All inputs are differential• > ...
EL4452: Features: • Complete variable-gain amplifier complete with output amplifier• Compensated for Gain 10• 50MHz signal bandwidth• 50MHz gain-control bandwidth• Low 29nV/Hz...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
V+ Positive Supply Voltage. . . . . . . . . . . . . . . . . . . . . . . . .16.5V
VS V+ to V- Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . .33V
VIN Voltage at any Input or Feedback . . . . . . . . . . . . . .V+ to V-
VIN Difference between Pairs of Inputs or Feedback. . . . . . .6V
IIN Current into any Input or Feedback Pin. . . . . . . . . . . . . 4mA
IOUT Output Current . . . . . . . . . . . . . . . . . . . . . . . . .. . . . 30mA
PD Maximum Power Dissipation. . . . . . . . . . . . . . . . See Curves
TA Operating Temperature Range . . . . . . . . . . -40°C to +85°C
TS Storage Temperature Range. . . . . . . . . . . -60°C to +150°C
CAUTION: Stresses above those listed in "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied.

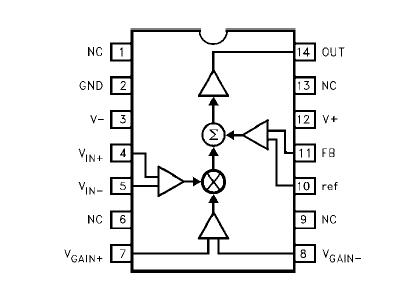

The EL4452 is a complete variablegain circuit. It offers wide bandwidth and excellent linearity, while including a powerful output voltage amplifier, drawing modest current. The higher gain and lower input noise makes the EL4452 ideal for use in AGC systems.
The EL4452 operates on ±5V to ±15V and has an analog input range of ±0.5V. AC characteristics do not change appreciably over the supply range.
The circuit has an operational temperature of -40°C to +85°C and is packaged in 14-pin PDIP and SO-14.
The EL4452 is fabricated with Elantec's proprietary complementary bipolar process which gives excellent signal symmetry and is very rugged.
