Features:

• Complete four-quadrant multiplier with output amp-requires no extra components
• Good linearity of 0.3%
• 90 MHz bandwidth for both X and Y inputs
• Operates on ±5V to ±15V supplies
• All inputs are differential
• 400V/s slew rate


Application

• Modulation/Demodulation
• RMS computation
• Real-time power computation
• Nonlinearity correction/generation


Pinout

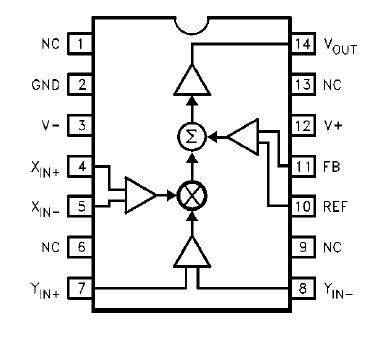

Connection Diagram


Specifications

V+ Positive Supply Voltage ......................................16.5V
VS V+ to V- Supply Voltage .........................................33V
VIN Voltage at any Input or Feedback .................V+ to V-
VIN Difference between Pairs of Inputs or Feedback.... 6V
IIN Current into any Input or Feedback Pin ..............4 mA
IOUT Output Current ..............................................30 mA
PD Maximum Power Dissipation ......................See Curves
TA Operating Temperature Range......... -40°C to +85°C
TS Storage Temperature Range ..........-60°C to +150°C
Important Note:
All parameters having Min/Max specifications are guaranteed. The Test Level column indicates the specific device testing actually performed during production and Quality inspection. Elantec performs most electrical tests using modern high-speed automatic test equipment, specifically the LTX77 Series system. Unless otherwise noted, all tests are pulsed tests, therefor TJ = TC = TA.


Description

The EL4450C is a complete four-quadrant multiplier circuit. It offers wide bandwidth and good linearity while including a powerful output voltage amplifier, drawing modest supply current.

The EL4450C operates on ±5V supplies and has an analog input range of ±2V, making it ideal for video signal processing. AC characteristics do not vary over the ±5V to ±15V supply range.

The multiplier has an operational temperature range of -40°C to +85°C and are packaged in plastic 14-pin P-DIP and SO.
