Features:

• Complete four-quadrant multiplier with output amp- requires no extra components
• Good linearity of 0.3%
• 90MHz bandwidth for both X and Y inputs
• Operates on ±5V to ±15V supplies
• All inputs are differential
• 400V/s slew rate



Application

• Modulation/Demodulation
• RMS computation
• Real-time power computation
• Nonlinearity correction/generation



Pinout

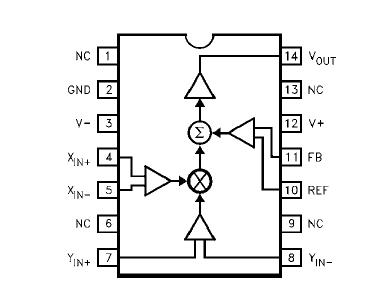

  Connection Diagram


Specifications

V+ Positive Supply Voltage. . . . . . . . . . . . . . . . . . .  . . . . . 16.5V
VS V+ to V- Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . .33V
VIN Voltage at any Input or Feedback . . . . . . . . . . .. V+ to VVIN
Difference between Pairs of Inputs or Feedback. . . . . . . . . . .6V
IIN Current into any Input or Feedback Pin. . . . . . . . . . . . . 4mA
IOUT Output Current . . . . . . . . . . . . . . . . . . . . . . .. . . . . . 30mA
PD Maximum Power Dissipation. . . . . . . . . . . . . . .  . See Curves
TA Operating Temperature Range . . . . . . . . . .-40°C to +85°C
TS Storage Temperature Range. . . . . . . . .  . -60°C to +150°C
CAUTION: Stresses above those listed in "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied.




Description

The EL4450 is a complete fourquadrant multiplier circuit. It offers wide bandwidth and good linearity while including a powerful output voltage amplifier, drawing modest supply current.

The EL4450 operates on ±5V supplies and has an analog input range of ±2V, making it ideal for video signal processing. AC characteristics do not vary over the ±5V to ±15V supply range.

The multiplier has an operational temperature range of -40°C to +85°C and are packaged in plastic 14-pin PDIP and SO.
