EL2444

Features: • 120MHz gain-bandwidth product• Unity-gain stable• Low supply current (per amplifier) - 5.2mA at VS = ±15V• Wide supply range - 2.5V to 36V • High slew rate - 325V/µs• Fast settling - 80ns to 0.1% for a 10V step• Low differential gain - 0....

product image

EL2444 Picture
See larger image
SeekIC No. : 004335227 Detail

EL2444: Features: • 120MHz gain-bandwidth product• Unity-gain stable• Low supply current (per amplifier) - 5.2mA at VS = ±15V• Wide supply range - 2.5V to 36V • High slew rate ...

EL2444 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EL2444
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 120MHz gain-bandwidth product
• Unity-gain stable
• Low supply current (per amplifier)
   - 5.2mA at VS = ±15V
• Wide supply range - 2.5V to 36V
• High slew rate - 325V/µs
• Fast settling - 80ns to 0.1% for a 10V step
• Low differential gain - 0.04% at AV =+2, RL = 150Ω
• Low differential phase - 0.15° at AV = +2, RL = 150Ω
• Wide output voltage swing - ±13.6V with VS = ±15V,
   RL =1kΩ
• Low cost, enhanced replacement for the AD827 &
   LT1229/LT1230
• Pb-Free available (RoHS compliant)


Application

• Video amplifiers
• Single-supply amplifiers
• Active filters/integrators
• High speed signal processing
• ADC/DAC buffers
• Pulse/RF amplifiers
• Pin diode receivers
• Log amplifiers


Pinout

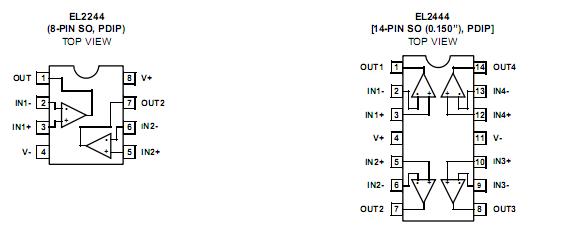

Connection Diagram


Specifications

Supply Voltage (VS). . . . . . . . . . . . . . . . . . . . . . . . . . . .±18V or 36V
Input Voltage (VIN) . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . .  ±VS
Differential Input Voltage (dVIN)  . . . . . . . . . . . . . .. . . . . . . . . .±10V
Continuous Output Current  . . . . . . . . . . . . . . . . . . . . . . . . . . . 40mA
Power Dissipation (PD)  . . . . . . . . . . . . . . . . . . . . . . . . .  See Curves
Operating Temperature Range (TA)  . . . . . . . . . . . . -40°C to +85°C
Operating Junction Temperature (TJ) . . . . . . . . . . . . . . . . . . +150°C
Storage Temperature (TST) . . . . . . . . . . . . . . .  . . -65°C to +150°C
