EL2227

Features:

• Voltage noise of only 1.9nV/Hz
• Current noise of only 1.2pA/Hz
• Bandwidth (-3dB) of 115MHz @A_V = +2
• Gain-of-2 stable
• Just 4.8mA per amplifier
• 8-pin MSOP package
• ±2.5V to ±12V operation
• Pb-Free available (RoHS compliant)




Application

• ADSL receivers
• HDSLII receivers
• Ultrasound input amplifiers
• Wideband instrumentation
• Communications equipment
• AGC & PLL active filters
• Wideband sensors

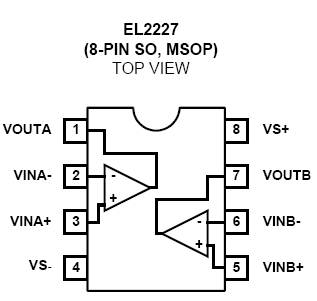

Pinout






Specifications

Supply Voltage between V_S+ and V_S-. . . . . . . . . . . . . . . . . . . . .28V
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . .V_S- - 0.3V, V_S +0.3V
Maximum Continuous Output Current . . . . . . . . . . . . . . . . . . .40mA
Maximum Die Temperature . . . . . . . . . . . . . . . . . . . . . . . . .150°C8
Storage Temperature. . . . . . . . . . . . . . . . . . . . . -65°C to +150°C
Operating Temperature . . . . . . . . . . . . . . . . . . . ..-40°C to +85°C
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See Curves
ESD Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2kV




Description
