Features: • Single (EL2180), dual (EL2280), and quad (EL2480) topologies
• 3mA supply current (per amplifier)
• 250MHz -3dB bandwidth
• Tiny SOT23-5 package (EL2180)
• Low cost
• Single- and dual-supply operation down to ±1.5V
• 0.05%/0.05° diff. gain/diff. phase into 150Ω
• 1200V/µs slew rate
• Large output drive current - 100mA (EL2180), 55mA (EL2280), 55mA (EL2480)
• Also available with disable in single (EL2186), dual (EL2286), and triple (EL2386)
• Lower power EL2170/EL2176 family available (1mA/70MHz) in single, dual, and quadApplication• Low power/battery applications
• HDSL amplifiers
• Video amplifiers
• Cable drivers
• RGB amplifiers
• Test equipment amplifiers

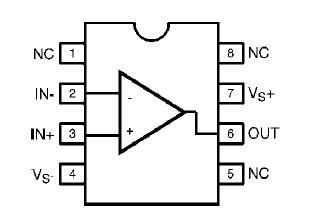

• Current to voltage convertersPinout
SpecificationsSupply Voltage between VS+ and GND. . . . . . . . . . . . . . . . +12.6V
Voltage between VS+ and VS- . . . . . . . . . . . . . . . . . . . . . . +12.6V
Common-Mode Input Voltage . . . . . . . . . . . . . . . . . . . VS- to VS+
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . .±6V
Current into +IN or -IN . . . . . . . . . . . . . . . . . . . . . . . . . .. .±7.5mA
Internal Power Dissipation . . . . . . . . . . . . . . . . . . . . . See Curves
Operating Ambient Temperature Range . . . . . . ..-40°C to +85°C
Operating Junction Temperature
Plastic Packages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150°C
Output Current (EL2180) . . . . . . . . . . . . . . . . . . . . . . . . . ±120mA
Output Current (EL2280) . . . . . . . . . . . . . . . . . . . . . . . . . . ±60mA
Output Current (EL2480) . . . . . . . . . . . . . . . . . . . . . . . . . . ±60mA
Storage Temperature Range . . . . . . . . . . . . . . -65°C to +150°CDescriptionThe EL2180, EL2280, and EL2480 are single, dual, and quad currentfeedback operational amplifiers which achieve a -3dB bandwidth of 250MHz at a gain of +1 while consuming only 3mA of supply current per amplifier. They will operate with dual supplies ranging from ±1.5V to ±6V, or from single supplies ranging from +3V to +12V. In spite of their low supply current, the EL2480 and the EL2280 can output 55mA while swinging to ±4V on ±5V supplies.
The EL2180 can output 100mA with similar output swings. These attributes make the EL2180, EL2280, and EL2480 excellent choices for low power and/or low voltage cable-driver, HDSL, or RGB applications. For applications where board space is extremely critical, the EL2180 is available in the tiny 5-pin SOT-23 package, which has a footprint 28% the size of an 8-pin SO. For single, dual, and triple applications with disable, consider the EL2186 (8-pin single), EL2286 (14-pin dual), or EL2386 (16-pin triple).
For lower power applications where speed is still a concern, consider the EL2170/EL2176 family which also comes in similar single, dual, and quad configurations. The EL2170/EL2176 family provides a -3dB bandwidth of 70MHz while consuming 1mA of supply current per amplifier.
EL2180 Data Sheet
