Position: Home  > All Categories> Integrated Circuits (ICs) > EFS2B-CD

EFS2B-CD

Features: · VERY WIDE TEMPERATURE RANGE: tube ignition from - 30 to + 85 °C· SINGLE SHOT IGNITION FROM -30 to 0°C : 350mA, 1350V striking pulse·VERY WIDE POWER RANGE: Fluorescent tube lamp ignition from 18 to 70W· EFS2B driver compatible with 50/60Hz operation·SELECTABLE PREHEAT TIME: EFS2A driver...

product image

EFS2B-CD Picture
See larger image
SeekIC No. : 004334475 Detail

EFS2B-CD: Features: · VERY WIDE TEMPERATURE RANGE: tube ignition from - 30 to + 85 °C· SINGLE SHOT IGNITION FROM -30 to 0°C : 350mA, 1350V striking pulse·VERY WIDE POWER RANGE: Fluorescent tube lamp ignition ...

EFS2B-CD Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EFS2B-CD
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· VERY WIDE TEMPERATURE RANGE: tube ignition from - 30 to + 85 °C
· SINGLE SHOT IGNITION FROM -30 to 0°C : 350mA, 1350V striking pulse
 ·VERY WIDE POWER RANGE: Fluorescent tube lamp ignition from 18 to 70W
 · EFS2B driver compatible with 50/60Hz operation
 ·SELECTABLE PREHEAT TIME: EFS2A driver: 1.5s or 2.56s (50Hz) EFS2B driver: 0.74s or 1.24s (50Hz) EFS2B driver: 0.62s or 1.03s (60Hz)
· 8 STRIKING PULSES CAPABILITY: for very cold environment or ageing lamp
·STARTER SHUTDOWN WITH FAILED LAMP


Pinout

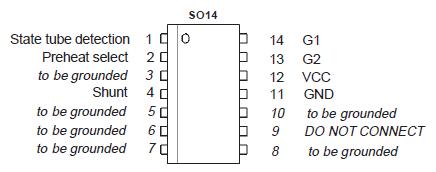

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
Top
Operating Junction temperature range
-30 to +125
°C
Tstg
Storage temperature range
-55 to +150
°C



Description

The EFS2B-CD EFS Kit is a 2 chips set used with 7 additional passive components, for Glow switch Starter. The ASD] (Application Specific Discretes) includes a bi-directional Power Switch and a Power Supply for the driver.

The EFS2B-CD driver provides a program to ensure a fully optimised linear fluorescent lamp ignition.
