EDZ960/4, US $ 1-1.85, EDZ960/4 DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 003387734 Detail

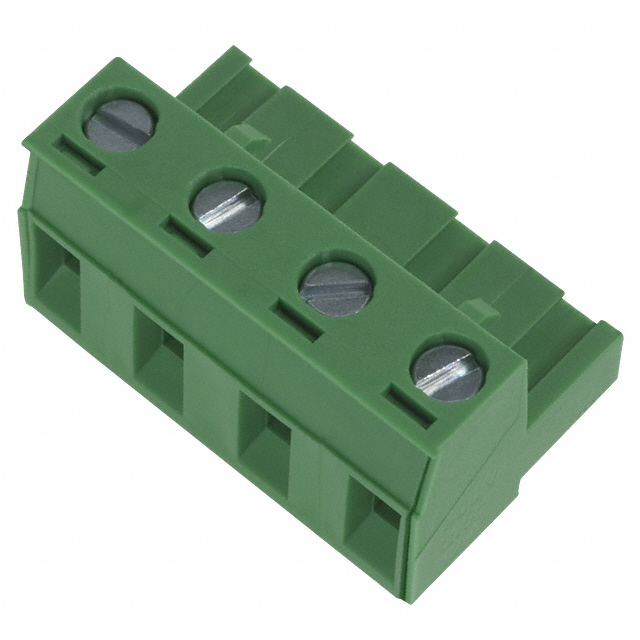

EDZ960/4: TERM BLOCK PLUG 7.62MM 4POS

EDZ960/4 Data Sheet

US $ 1~1.85 / Piece | Get Latest Price

Part Number:: EDZ960/4
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~25
25~50
50~100
100~250
250~500
500~1000
1000~2500

Unit Price
$1.85
$1.77
$1.63
$1.55
$1.48
$1.29
$1.26
$1.07
$1

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

EDZ950/10 evaluate
US $1.76 - 3.25 / Piece

TERM BLOCK PLUG 5.08MM 10POS
EDZ950/11 evaluate
US $1.93 - 3.58 / Piece

TERM BLOCK PLUG 5.08MM 11POS
EDZ950/12 evaluate
US $2.08 - 3.74 / Piece

TERM BLOCK PLUG 5.08MM 12POS

Product Details

Quick Details

Breakover Voltage VBO :	300 V	Series:	EDZ960
Manufacturer:	On Shore Technology Inc	Terminal Block Type:	Plug, Female Sockets
Positions Per Level:	4	Pitch:	0.300" (7.62mm)
Number of Levels:	1	Header Orientation:	-
Plug Wire Entry:	180°	Termination:	Screw
Wire Gauge:	12-28 AWG	Current:	15A
Voltage:	300V	Mounting Type:	Free Hanging (In-Line)
Features:	Retention Latches (Non-Wire Side)	Color:	Green

Description

Number of Levels: 1
Voltage: 300V
Color: Green
Packaging: Bulk
Current: 15A
Positions Per Level: 4
Header Orientation: -
Termination: Screw
Mounting Type: Free Hanging (In-Line)
Terminal Block Type: Plug, Female Sockets
Plug Wire Entry: 180°
Features: Retention Latches (Non-Wire Side)
Manufacturer: On Shore Technology Inc
Pitch: 0.300" (7.62mm)
Series: EDZ960
Wire Gauge: 12-28 AWG

Parameters:

Technical/Catalog Information	EDZ960/4
Vendor	On Shore Technology Inc
Category	Connectors
Pitch	0.300" (7.62mm)
Terminal Block Type	Plug, Female Socket
Color	Green
Mounting Type	Free Hanging (In-Line)
Features	Retention Latches (Non-Wire Side)
Termination	Screw
Mating Orientation	In-Line with Wire
Current	15A
Voltage	300V
Wire Gauge	12-28 AWG
Number of Levels	1
Positions Per Level	4
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	EDZ960 4 EDZ9604 ED1735 ND ED1735ND ED1735
