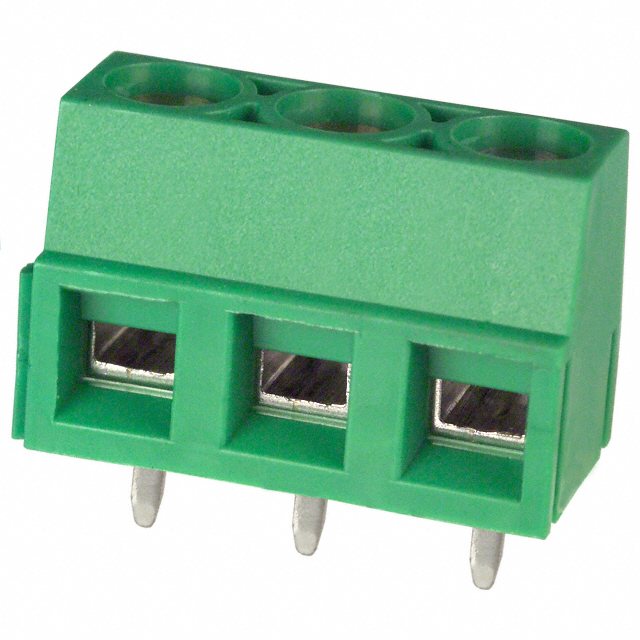

TERMINAL BLOCK 5.08MM 3POS PCB
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Series: | EDZ250 | Manufacturer: | On Shore Technology Inc | ||
Number of Levels: | 1 | Positions Per Level: | 3 | ||
Pitch: | 0.200" (5.08mm) | Mating Orientation: | Horizontal with Board | ||
Current: | 15A | Off-State Capacitance CO : | 20 pF to 30 pF | ||
Voltage: | 300V | Wire Gauge: | 14-28 AWG | ||
Mounting Type: | Through Hole | Wire Termination: | Screw - Rising Cage Clamp | ||
Features: | - | Color: | Green |
Technical/Catalog Information | EDZ250/3 |
Vendor | On Shore Technology Inc |
Category | Connectors |
Color | Green |
Current | 16A |
Features | - |
Mating Orientation | Horizontal with Board |
Mounting Type | Through Hole |
Pitch | 0.200" (5.08mm) |
Terminal Block Type | Wire to Board |
Termination | Screw |
Voltage | 250V |
Wire Gauge | 14-28 AWG |
Number of Levels | 1 |
Positions Per Level | 3 |
Lead Free Status | Lead Free |
RoHS Status | RoHS Compliant |
Other Names | EDZ250 3 EDZ2503 ED1974 ND ED1974ND ED1974 |
