EDS5108ABTA

Features: • 3.3V power supply• Clock frequency: 166MHz/133MHz (max.)• LVTTL interface• Single pulsed /RAS• 4 banks can operate simultaneously and independently• Burst read/write operation and burst read/single write operation capability• Programmable burst...

product image

EDS5108ABTA Picture
See larger image
SeekIC No. : 004333912 Detail

EDS5108ABTA: Features: • 3.3V power supply• Clock frequency: 166MHz/133MHz (max.)• LVTTL interface• Single pulsed /RAS• 4 banks can operate simultaneously and independently• B...

EDS5108ABTA Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EDS5108ABTA
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 3.3V power supply
• Clock frequency: 166MHz/133MHz (max.)
• LVTTL interface
• Single pulsed /RAS
• 4 banks can operate simultaneously and independently
• Burst read/write operation and burst read/single write operation capability
• Programmable burst length (BL): 1, 2, 4, 8, full page
• 2 variations of burst sequence
-Sequential (BL = 1, 2, 4, 8, full page)
-Interleave (BL = 1, 2, 4, 8)
• Programmable /CAS latency (CL): 2, 3
• Byte control by DQM
: DQM (EDS5104AB, EDS5108AB)
: UDQM, LDQM (EDS5116AB)
• Refresh cycles: 8192 refresh cycles/64ms
• 2 variations of refresh
-Auto refresh
-Self refresh


Pinout

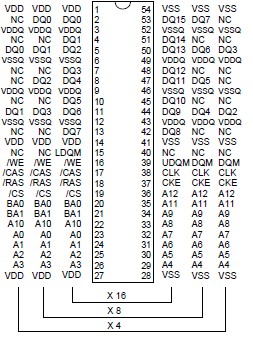

Connection Diagram


Specifications

Parameter

Symbol

Rating

Unit

Voltage on any pin relative to VSS
VT
0.5 to VDD + 0.5 (4.6 (max.))
V
Supply voltage relative to VSS
VDD
0.5 to +4.6
V
Short circuit output current
IOS
50
mA
Power dissipation
PD
1.0
W
Operating temperature
TA
0 to +70
°C

Storage temperature
Tstg
55 to +125
°C

Caution
Exposing the device to stress above those listed in Absolute Maximum Ratings could cause permanent damage. The device is not meant to be operated under conditions outside the limits described in the operational section of this specification. Exposure to Absolute Maximum Rating conditions for extended periods may affect device reliability.




Description

The EDS5104AB is a 512M bits SDRAM organized as 33,554,432 words × 4 bits × 4 banks. The EDS5108AB is a 512M bits SDRAM organized as 16,777,216 words × 8 bits × 4 banks. The EDS5116AB is a 512M bits SDRAM organized as 8,388,608 words × 16 bits × 4 banks. All inputs and outputs are referred to the rising edge of the clock input. It is packaged in standard 54- pin plastic TSOP (II).
