EDS2732CABH

• 2.5V power supply
• Clock frequency: 133MHz/100MHz (max.)
• Single pulsed /RAS
• ×32 organization
• 4 banks can operate simultaneously and independently
• Burst read/write operation and burst read/single write operation capability
• Programmable burst length (BL):  1, 2, 4, 8 and full page
• 2 variations of burst sequence
 Sequential (BL = 1, 2, 4, 8, full page)
 Interleave (BL = 1, 2, 4, 8)
• Programmable /CAS latency (CL):  2, 3
• Byte control by DQM
• Address  8K Row address /256 column address
• Refresh cycles  4096 refresh cycles/64ms
• 2 variations of refresh  Auto refresh  Self refresh
• FBGA package with lead free solder (Sn-Ag-Cu)

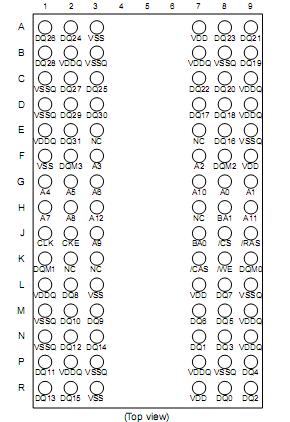

The EDS2732CA is a 256M bits SDRAM organized as 2,097,152 words × 32 bits × 4 banks. All inputs and outputs are synchronized with the positive edge of the clock. It is packaged in 90-ball FBGA.
