EDL1216CASA

Features: • Low voltage power supply  VDD: 1.8V ±0.15V  VDDQ: 1.8V ±0.15V • Wide temperature range (−25°C to 85°C) • Programmable partial self refresh • Programmable driver strength • Programmable temperature compensated self refresh (Option) ...

product image

EDL1216CASA Picture
SeekIC No. : 004333866 Detail

EDL1216CASA: Features: • Low voltage power supply  VDD: 1.8V ±0.15V  VDDQ: 1.8V ±0.15V • Wide temperature range (−25°C to 85°C) • Programmable partial self refresh •...

floor Price/Ceiling Price

Part Number:
EDL1216CASA
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/8

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low voltage power supply  VDD: 1.8V ± 0.15V  VDDQ:  1.8V ± 0.15V
• Wide temperature range (−25°C to 85°C)
• Programmable partial self refresh
• Programmable driver strength
• Programmable temperature compensated self refresh (Option)
• Deep power down mode
• Small package (54-ball FBGA (µBGA))
• Fully Synchronous Dynamic RAM, with all signals referenced to a positive clock edge
• Pulsed interface
• Possible to assert random column address in every cycle
• Quad internal banks controlled by BA0 and BA1
• Byte control by LDQM and UDQM
• Wrap sequence = Sequential/ Interleave
• /CAS latency (CL) = 2, 3
• Automatic precharge and controlled precharge
• Auto refresh and self refresh
• ×16 organization
• 4,096 refresh cycles/64ms
• Burst termination by Burst stop command and Precharge command
• FBGA(µBGA) package is lead free solder (Sn-Ag-Cu)



Application

Mobile cellular handsets, PDAs, wireless PDAs, handheld PCs, home electronic appliances, and information appliances, etc.

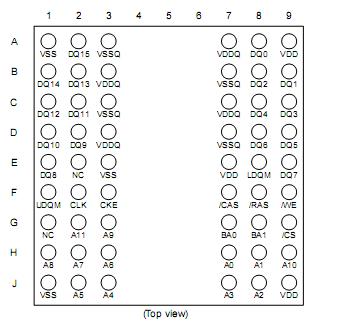

Pinout

  Connection Diagram




Specifications

Parameter                                              Symbol                         Rating                          Unit                   Note
Voltage on any pin relative to VSS            VT                         0.5 to +3.6                       V
Supply voltage relative to VSS VDD,          VDDQ                   0.5 to +2.6                       V
Short circuit output current                       IOS                                 50                            mA
Power dissipation                                     PD                                    1.0                          W
Operating ambient temperature                TA                         25 to +85
Storage temperature                               Tstg                       55 to +125

























Description

The EDL1216CA is a 128M bits Mobile RAM organized as 2,097,152 words × 16 bits × 4 banks.  The Mobile RAM achieved low power consumption and high-speed data transfer using the pipeline architecture.  All inputs and outputs are synchronized with the positive edge of the clock. This product is packaged in 54-ball FBGA (µBGA).
