ED604CT

Features: For thorough hole applicationsLow profile packageBuilt-in strain reliefEasy pick and placeSuperfast recovery times for high efficiencyPlastic package has Underwriters Laboratory Flammability Classification 94V-OGlass passivated junctionHigh temperature soldering:260 / 10 seconds at termi...

product image

ED604CT Picture
See larger image
SeekIC No. : 004333743 Detail

ED604CT: Features: For thorough hole applicationsLow profile packageBuilt-in strain reliefEasy pick and placeSuperfast recovery times for high efficiencyPlastic package has Underwriters Laboratory Flammabili...

ED604CT Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ED604CT
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

For thorough hole applications
Low profile package
Built-in strain relief
Easy pick and place
Superfast recovery times for high efficiency
Plastic package has Underwriters Laboratory Flammability Classification 94V-O
Glass passivated junction
High temperature soldering:
260 / 10 seconds at terminals




Pinout

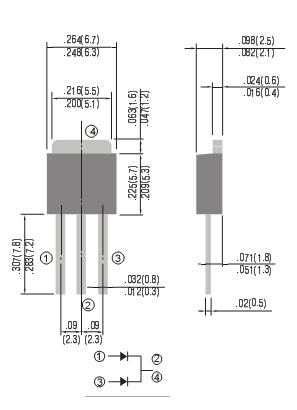

Connection Diagram




Specifications

Characteristic Symbol ED602CT ED603CT ED604CT ED606CT Unit
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage		 VRRM
VRWM
VR		 200 300 400 600 V
RMS Reverse Voltage VR(RMS) 140 210 280 420 V
Average Rectified Output Current @TL = 75°C IO 5.0 A
Non-Repetitive Peak Forward Surge Current 8.3ms
Single half sine-wave superimposed on rated load
(JEDEC Method)		 IFSM 60 A
Forward Voltage (Note 1) @IF = 3.0A VFM 0.95 1.30 1.70 V
Peak Reverse Current @TA = 25°C
At Rated DC Blocking Voltage @TA = 100°C		 IRM 5.0
50		 A
Typical Thermal Resistance Junction to Ambient

RJC

RJA

9

80

 K/W
Reverse Recovery Time (Note 2) trr 35 nS
Operating and Storage Temperature Range Tj, TSTG -50 to +150 °C
