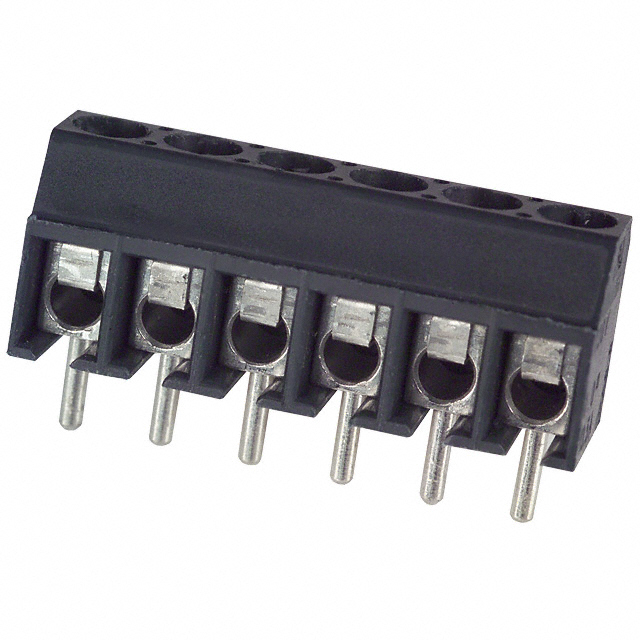

TERMINAL BLOCK 3.5MM 6POS PCB
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Series: | ED555/DS | Manufacturer: | On Shore Technology Inc | ||
Number of Levels: | 1 | Positions Per Level: | 6 | ||
Pitch: | 0.138" (3.50mm) | Mating Orientation: | Horizontal with Board | ||
Current: | 6A | Voltage: | 150V | ||
Off-State Capacitance CO : | 20 pF to 30 pF | Wire Gauge: | 16-28 AWG | ||
Mounting Type: | Through Hole | Wire Termination: | Screw - Leaf Spring, Wire Guard | ||
Features: | - | Color: | Gray |
Technical/Catalog Information | ED555/6DS |
Vendor | On Shore Technology Inc |
Category | Connectors, Interconnects |
Color | Gray |
Current | 6A |
Features | - |
Mating Orientation | Horizontal with Board |
Mounting Type | Through Hole |
Pitch | 0.138" (3.50mm) |
Terminal Block Type | Wire to Board |
Termination | Screw |
Voltage | 125V |
Wire Gauge | 16-28 AWG |
Number of Levels | 1 |
Positions Per Level | 6 |
Lead Free Status | Lead Free |
RoHS Status | RoHS Compliant |
Other Names | ED555 6DS ED5556DS ED1518 ND ED1518ND ED1518 |
