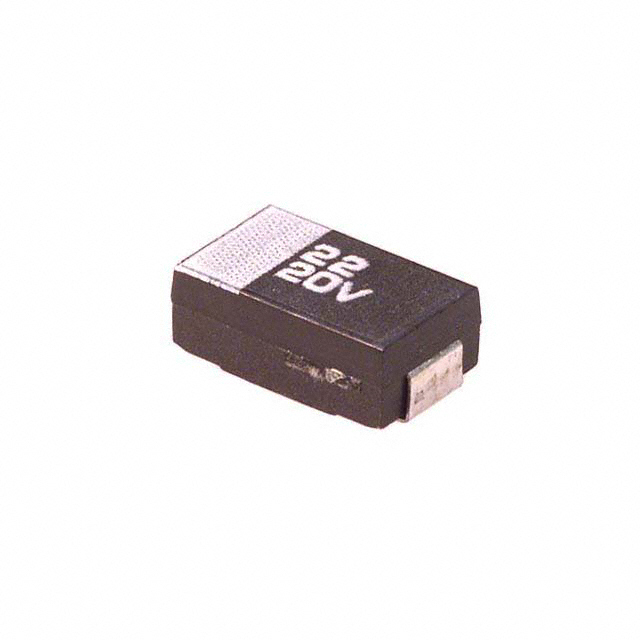

ECS-T1DD226R: CAP TANT 22UF 20V 20% 2917

ECS-T1DD226R Data Sheet

Get Latest Price

Part Number:: ECS-T1DD226R
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

ECS-.320-12.5-13 evaluate
Crystals 32 KHz 12.5pF 30ppm ECS-31-2X6
ECS-.320-12.5-13X evaluate
US $.34 - .46 / Piece

Crystals 32 KHz 12.5pF 30ppm
ECS-.327-12.5-11 evaluate
Crystals 32.768 KHz 12.5pF ECX-205

Product Details

Quick Details

Series:	TE	Manufacturer:	Panasonic Electronic Components
Capacitance:	22µF	Maximum Limiting Voltage :	3.5 V
Voltage - Rated:	20V	Tolerance:	±20%
ESR (Equivalent Series Resistance):	-	Type:	Molded
Operating Temperature:	-55°C ~ 125°C	Mounting Type:	Surface Mount
Package / Case:	2917 (7343 Metric)	Size / Dimension:	0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max):	0.110" (2.80mm)	Lead Spacing:	-
Manufacturer Size Code:	D	Features:	General Purpose
Packaging:	Tape & Reel (TR)

Description

Series: TE
Manufacturer: Panasonic Electronic Components
Voltage - Rated: 20V
Tolerance: ±20%
ESR (Equivalent Series Resistance): -
Type: Molded
Operating Temperature: -55°C ~ 125°C
Mounting Type: Surface Mount
Lead Spacing: -
Features: General Purpose
Failure Rate: -
Capacitance: 22µF
Height - Seated (Max): 0.110" (2.80mm)
Package / Case: 2917 (7343 Metric)
Size / Dimension: 0.287" L x 0.169" W (7.30mm x 4.30mm)
Manufacturer Size Code: D
Packaging: Tape & Reel (TR)

Parameters:

Technical/Catalog Information	ECS-T1DD226R
Vendor	Panasonic - ECG (VA)
Category	Capacitors
Capacitance	22F
Voltage - Rated	20V
Tolerance	±20%
Package / Case	7343-31 (EIA)
Packaging	Cut Tape (CT)
Features	General Purpose
Maximum Temperature	-55°C ~ 125°C
Lead Spacing	-
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Mounting Type	Surface Mount
Drawing Number	*
Lead Free Status	Request Inventory Verification
RoHS Status	Request Inventory Verification
Other Names	ECS T1DD226R ECST1DD226R PCS4226CT ND PCS4226CTND PCS4226CT
