ECS-PEC25-1250-B-N, US $ 8.04-13.03, ECS-PEC25-1250-B-N DataSheet download, circuit diagram from SeekIC.com

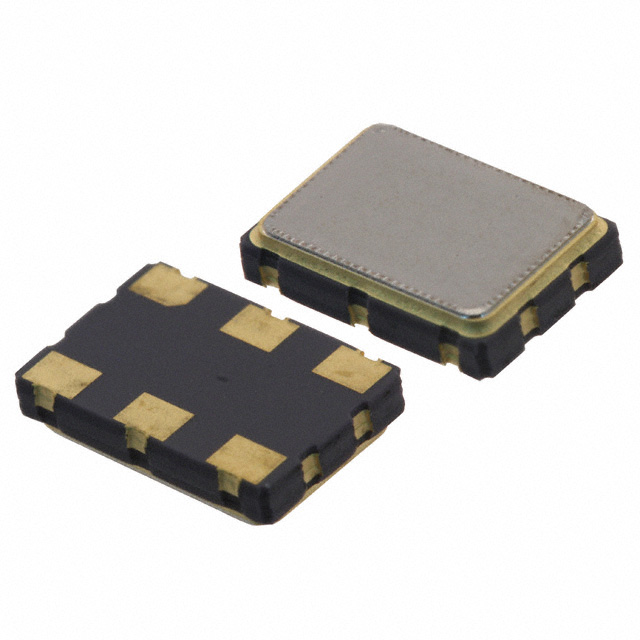

See larger image

SeekIC No. : 003415446 Detail

ECS-PEC25-1250-B-N: OSC 125.000 MHZ 2.5V PECL SMD

ECS-PEC25-1250-B-N Data Sheet

US $ 8.04~13.03 / Piece | Get Latest Price

Part Number:: ECS-PEC25-1250-B-N
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~50
50~100

Unit Price
$13.03
$11.95
$9.77
$8.04

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

ECS-.320-12.5-13 evaluate
Crystals 32 KHz 12.5pF 30ppm ECS-31-2X6
ECS-.320-12.5-13X evaluate
US $.34 - .46 / Piece

Crystals 32 KHz 12.5pF 30ppm
ECS-.327-12.5-11 evaluate
Crystals 32.768 KHz 12.5pF ECX-205

Product Details

Quick Details

Series:	ECS-PEC25	Manufacturer:	ECS Inc
Type:	XO (Standard)	Frequency:	125MHz
Function:	Tri-State (Output Enable)	Output:	PECL
Voltage - Supply:	2.5V	Power Dissipation :	175 W
Frequency Stability:	±50ppm	Operating Temperature:	-40°C ~ 85°C
Current - Supply (Max):	90mA	Ratings:	-
Mounting Type:	Surface Mount	Size / Dimension:	0.276" L x 0.197" W (7.00mm x 5.00mm)
Height:	0.067" (1.70mm)	Package / Case:	6-SMD, No Lead (DFN, LCC)

Description

Type: XO (Standard)
Function: Tri-State (Output Enable)
Frequency Stability: ±50ppm
Operating Temperature: -40°C ~ 85°C
Ratings: -
Mounting Type: Surface Mount
Size / Dimension: 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height: 0.067" (1.70mm)
Packaging: Cut Tape (CT)Alternate Packaging
Manufacturer: ECS Inc
Voltage - Supply: 2.5V
Package / Case: 6-SMD, No Lead (DFN, LCC)
Frequency: 125MHz
Output: PECL
Current - Supply (Max): 90mA
Series: ECS-PEC25

Parameters:

Technical/Catalog Information	ECS-PEC25-1250-B-N
Vendor	ECS Inc. (VA)
Category	Crystals and Oscillators
Frequency	125MHz
Package / Case	SMD 7mm x 5mm
Packaging	Digi-Reel?
Supply Voltage	2.5V
Type	Standard
Operating Temperature	-40°C ~ 85°C
Frequency Stability	±50ppm
Supply Current	90mA
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ECS PEC25 1250 B N ECSPEC251250BN XC1473DKR ND XC1473DKRND XC1473DKR
