ECS-3953M-250-BN-TR, US $ 1.05-2.07, ECS-3953M-250-BN-TR DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 003416904 Detail

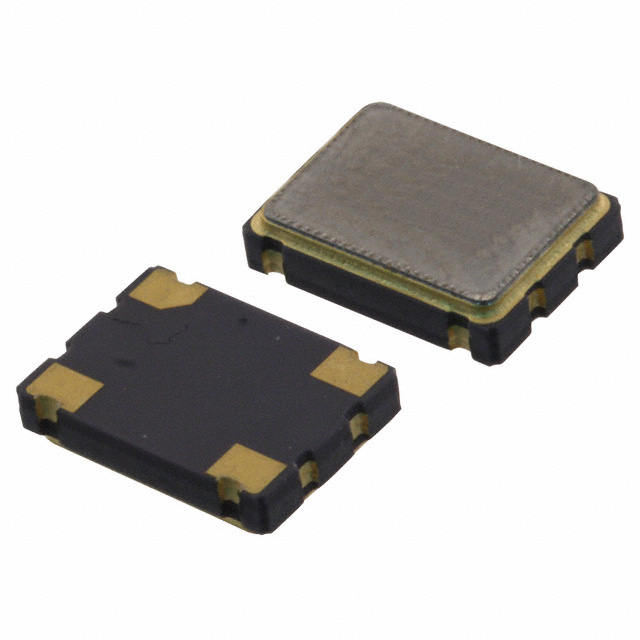

ECS-3953M-250-BN-TR: OSC 25.000 MHZ 3.3V SMD

ECS-3953M-250-BN-TR Data Sheet

US $ 1.05~2.07 / Piece | Get Latest Price

Part Number:: ECS-3953M-250-BN-TR
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~50
50~100
100~500

Unit Price
$2.07
$1.79
$1.57
$1.24
$1.05

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/8/14

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

ECS-.320-12.5-13 evaluate
Crystals 32 KHz 12.5pF 30ppm ECS-31-2X6
ECS-.320-12.5-13X evaluate
US $.34 - .46 / Piece

Crystals 32 KHz 12.5pF 30ppm
ECS-.327-12.5-11 evaluate
Crystals 32.768 KHz 12.5pF ECX-205

Product Details

Quick Details

Series:	ECS-3953M-BN	Manufacturer:	ECS Inc
Type:	XO (Standard)	Frequency:	25MHz
Function:	Tri-State (Output Enable)	Output:	HCMOS
Voltage - Supply:	3.3V	Frequency Stability:	±50ppm
Power Dissipation :	175 W	Operating Temperature:	-40°C ~ 85°C
Current - Supply (Max):	15mA	Ratings:	-
Mounting Type:	Surface Mount	Size / Dimension:	0.276" L x 0.197" W (7.00mm x 5.00mm)
Height:	0.067" (1.70mm)	Package / Case:	4-SMD, No Lead (DFN, LCC)

Description

Type: XO (Standard)
Function: Tri-State (Output Enable)
Voltage - Supply: 3.3V
Frequency Stability: ±50ppm
Operating Temperature: -40°C ~ 85°C
Ratings: -
Mounting Type: Surface Mount
Size / Dimension: 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height: 0.067" (1.70mm)
Package / Case: 4-SMD, No Lead (DFN, LCC)
Packaging: Cut Tape (CT)Alternate Packaging
Manufacturer: ECS Inc
Frequency: 25MHz
Output: HCMOS
Current - Supply (Max): 15mA
Series: ECS-3953M-BN

Parameters:

Technical/Catalog Information	ECS-3953M-250-BN-TR
Vendor	ECS Inc. (VA)
Category	Crystals and Oscillators
Frequency	25MHz
Package / Case	SMD 7mm x 5mm
Packaging	Cut Tape (CT)
Supply Voltage	3.3V
Type	Standard
Operating Temperature	-40°C ~ 85°C
Frequency Stability	±50ppm
Supply Current	15mA
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ECS 3953M 250 BN TR ECS3953M250BNTR XC339CT ND XC339CTND XC339CT
