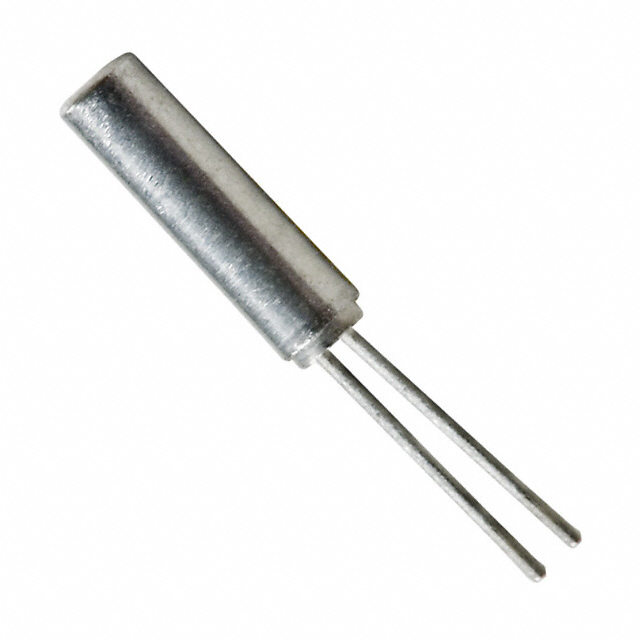

ECS-.327-8-14X

Manufacturer: ECS Inc
Operating Mode: Fundamental
Ratings: -
Type: kHz Crystal (Tuning Fork)
Frequency: 32.768kHz
Frequency Stability: -
Frequency Tolerance: ±20ppm
Operating Temperature: -10°C ~ 60°C
Mounting Type: Through Hole
Package / Case: Cylindrical Can, Radial
Packaging: Bulk
Load Capacitance: 8pF
Series: ECS-1x5X
ESR (Equivalent Series Resistance): 40 kOhm
Size / Dimension: 0.059" Dia x 0.201" L (1.50mm x 5.10mm)
Height: 0.201" (5.10mm)


Pinout




Description

The ECS-.327-8-14X tuning fork type crystals are used as a clock source in communication equipment, measuring instruments, microprocessors and other time management applications. Their low power consumption makes these crystals ideal for portable equipment.

Features of the ECS-.327-8-14X are:(1)long term stability;(2)cost effective;(3)tight tolerance;(4)excellent resistance and environmental characteristics;(5)pb free RoHS compliant.

The operating conditions/electrical characteristics of the ECS-.327-8-14X can be summarized as:(1):the parameter is normal frequency,the rating is 32.768,the unit is MHz;(2):the parameter is frequency tolerance,the rating is ±20,the unit is ppm;(3):the parameter is operating temperature range,the rating is -10 to +60,the unit is ;(4):the parameter is turnover temperature,the rating is +25±5,the unit is ;(5):the parameter is storage temperature,the rating is -40 to +85,the unit is ;(6):the parameter is equivalent series resistance,the rating is 35,the unit is k;(7):the parameter is insualent resistance,the rating is 500M,the unit is ;(8):the parameter is drive level,the rating is 1.0,the unit is W;(9):the parameter is aging (first year),the rating is ±3,the unit is ppm;(10):the parameter is vibration resistance,the rating is ±5,the unit is ppm;(11):the parameter is shock resistance,the rating is ±5,the unit is ppm;(12):the parameter is capactance ratio,the rating is 460;(13):the parameter is shunt capactance,the rating is 1.60,the unit is pF;(14):the parameter is temperature coefficient,the rating is -0.04,the unit is ppm/;(15):the parameter is Q factor,the rating is 90000;(16):the parameter is load capacitance,the rating is 12.5,the unit is pF;(17):the parameter is motional capacitance,the rating is 0.003,the unit is pF.

Parameters:

Technical/Catalog Information	ECS-.327-8-14X
Vendor	ECS Inc
Category	Crystals and Oscillators
Frequency	32.768kHz
Load Capacitance	8pF
Package / Case	Cylinder
Packaging	Bulk
Frequency Tolerance	±20ppm
Mounting Type	Through Hole
Operating Mode	Fundamental
Operating Temperature	-10°C ~ 60°C
Type	Tuning Fork
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ECS 327 8 14X ECS327814X X1125 ND X1125ND X1125
