SeekIC No. : 003415548 Detail

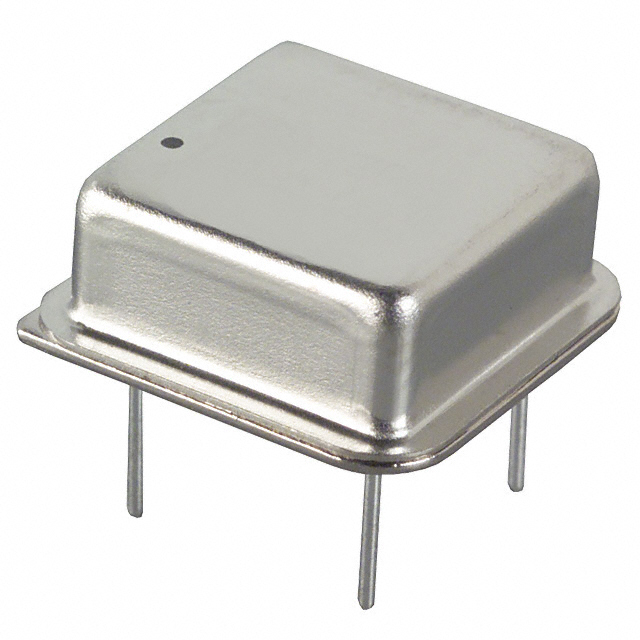

ECS-2200BX-098: OSC 9.8304 MHZ 5.0V 1/2 SIZE

ECS-2200BX-098 Data Sheet

US $ .82~2.21 / Piece | Get Latest Price

Part Number:: ECS-2200BX-098
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~50
50~100
100~500
500~1000
1000~2500
2500~5000

Unit Price
$2.21
$1.89
$1.58
$1.26
$1.05
$.88
$.85
$.82

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

ECS-.320-12.5-13 evaluate
Crystals 32 KHz 12.5pF 30ppm ECS-31-2X6
ECS-.320-12.5-13X evaluate
US $.34 - .46 / Piece

Crystals 32 KHz 12.5pF 30ppm
ECS-.327-12.5-11 evaluate
Crystals 32.768 KHz 12.5pF ECX-205

Product Details

Quick Details

Series:	ECS-2200X	Manufacturer:	ECS Inc
Type:	XO (Standard)	Frequency:	9.8304MHz
Function:	Tri-State (Output Enable)	Output:	HCMOS, TTL
Voltage - Supply:	5V	Frequency Stability:	±50ppm
Operating Temperature:	0°C ~ 70°C	Packaging :	Tray
Current - Supply (Max):	25mA	Ratings:	-
Mounting Type:	Through Hole	Size / Dimension:	0.520" L x 0.520" W (13.20mm x 13.20mm)
Height:	0.213" (5.40mm)	Package / Case:	8-DIP, 4 Leads (Half Size, Metal Can)

Description

Type: XO (Standard)
Function: Tri-State (Output Enable)
Output: HCMOS, TTL
Frequency Stability: ±50ppm
Ratings: -
Voltage - Supply: 5V
Current - Supply (Max): 25mA
Manufacturer: ECS Inc
Operating Temperature: 0°C ~ 70°C
Frequency: 9.8304MHz
Mounting Type: Through Hole
Packaging: Bulk
Size / Dimension: 0.520" L x 0.520" W (13.20mm x 13.20mm)
Package / Case: 8-DIP, 4 Leads (Half Size, Metal Can)
Height: 0.213" (5.40mm)
Series: ECS-2200X

Parameters:

Technical/Catalog Information	ECS-2200BX-098
Vendor	ECS Inc
Category	Crystals and Oscillators
Frequency	9.8304MHz
Package / Case	Half Size (8-DIP - 4-Pin)
Packaging	Bulk
Supply Voltage	5V
Type	Standard
Operating Temperature	0°C ~ 70°C
Frequency Stability	±50ppm
Supply Current	25mA
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ECS 2200BX 098 ECS2200BX098 XC1183 ND XC1183ND XC1183
