ECQ-B2473JF, US $ .05-.22, ECQ-B2473JF DataSheet download, circuit diagram from SeekIC.com

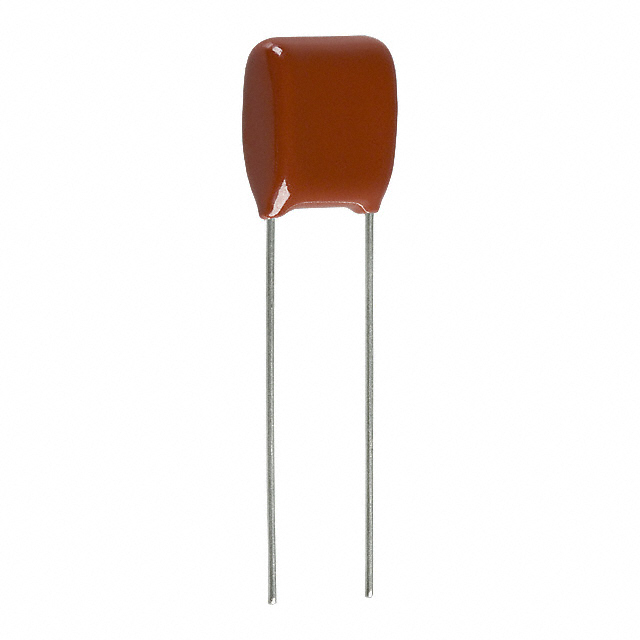

See larger image

SeekIC No. : 002967205 Detail

ECQ-B2473JF: CAP FILM 0.047UF 200VDC RADIAL

ECQ-B2473JF Data Sheet

US $ .05~.22 / Piece | Get Latest Price

Part Number:: ECQ-B2473JF
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~25
25~50
50~100
100~250
250~500
500~1000
1000~2500

Unit Price
$.22
$.15
$.13
$.11
$.09
$.08
$.07
$.06
$.05

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

ECQ-B1101JF evaluate
CAP FILM 100PF 100VDC RADIAL
ECQ-B1102JF evaluate
CAP FILM 1000PF 100VDC RADIAL
ECQ-B1103JF evaluate
CAP FILM 10000PF 100VDC RADIAL

Product Details

Quick Details

Series:	ECQ-B(F)	Manufacturer:	Panasonic Electronic Components
Capacitance:	0.047µF	Voltage Rating - AC:	-
Voltage Rating - DC:	200V	Dielectric Material:	Polyester
Tolerance:	±5%	ESR (Equivalent Series Resistance):	-
Operating Temperature:	-40°C ~ 105°C	Mounting Type:	Through Hole
Package / Case:	Radial	Size / Dimension:	0.532" L x 0.217" W (13.50mm x 5.50mm)
Mounting Style :	Stud	Height - Seated (Max):	0.551" (14.00mm)
Termination:	PC Pins	Lead Spacing:	0.394" (10.00mm)
Features:	General Purpose	Applications:	-

Description

Series: ECQ-B(F)
Manufacturer: Panasonic Electronic Components
Voltage Rating - AC: -
Dielectric Material: Polyester
Tolerance: ±5%
ESR (Equivalent Series Resistance): -
Operating Temperature: -40°C ~ 105°C
Mounting Type: Through Hole
Package / Case: Radial
Termination: PC Pins
Features: General Purpose
Applications: -
Capacitance: 0.047µF
Lead Spacing: 0.394" (10.00mm)
Height - Seated (Max): 0.551" (14.00mm)
Packaging: Bulk
Voltage Rating - DC: 200V
Size / Dimension: 0.532" L x 0.217" W (13.50mm x 5.50mm)

Parameters:

Technical/Catalog Information	ECQ-B2473JF
Vendor	Panasonic - ECG
Category	Capacitors
Capacitance	0.047F
Voltage - Rated	200V
Tolerance	±5%
Dielectric Material	Polyester Film
Package / Case	Radial
Packaging	Bulk
Maximum Temperature	-40°C ~ 105°C
Lead Spacing	0.394" (10.00mm)
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	-
Mounting Type	Through Hole
Features	General Purpose
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	ECQ B2473JF ECQB2473JF P4557A ND P4557AND P4557A
