ECQ-B1H123JF3

CAP FILM 0.012UF 50VDC RADIAL

product image

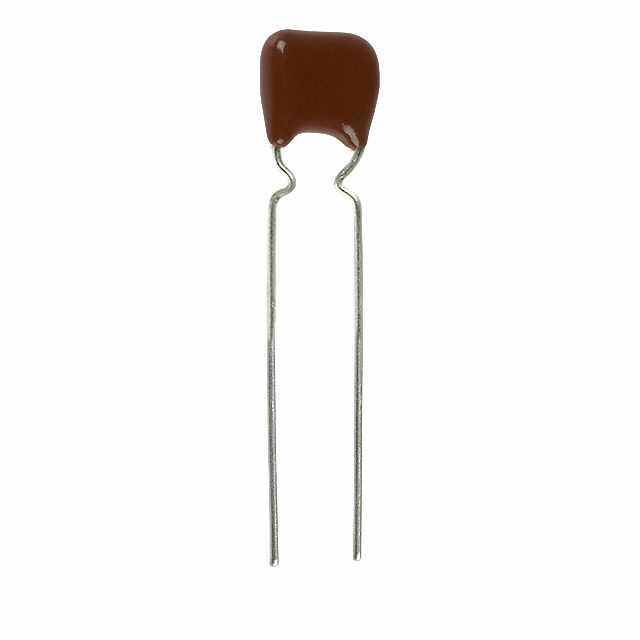

ECQ-B1H123JF3 Picture
See larger image
SeekIC No. : 002969386 Detail

ECQ-B1H123JF3: CAP FILM 0.012UF 50VDC RADIAL

ECQ-B1H123JF3 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ECQ-B1H123JF3
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: ECQ-B(F) Manufacturer: Panasonic Electronic Components
Capacitance: 0.012µF Voltage Rating - AC: -
Voltage Rating - DC: 50V Dielectric Material: Polyester
Tolerance: ±5% ESR (Equivalent Series Resistance): -
Operating Temperature: -40°C ~ 105°C Mounting Type: Through Hole
Package / Case: Radial Size / Dimension: 0.287" L x 0.130" W (7.30mm x 3.30mm)
Height - Seated (Max): 0.287" (7.30mm) Package / Case : INT-A-PAK
Termination: PC Pins Lead Spacing: 0.197" (5.00mm)
Features: General Purpose Applications: -

Description

Series: ECQ-B(F)
Manufacturer: Panasonic Electronic Components
Voltage Rating - AC: -
Voltage Rating - DC: 50V
Dielectric Material: Polyester
Tolerance: ±5%
ESR (Equivalent Series Resistance): -
Operating Temperature: -40°C ~ 105°C
Mounting Type: Through Hole
Package / Case: Radial
Termination: PC Pins
Lead Spacing: 0.197" (5.00mm)
Features: General Purpose
Applications: -
Packaging: Tape & Box (TB)
Capacitance: 0.012µF
Height - Seated (Max): 0.287" (7.30mm)
Size / Dimension: 0.287" L x 0.130" W (7.30mm x 3.30mm)


Parameters:

Technical/Catalog InformationECQ-B1H123JF3
VendorPanasonic - ECG
CategoryCapacitors
Capacitance0.012F
Voltage - Rated 50V
Tolerance±5%
Dielectric MaterialPolyester Film
Package / CaseRadial
PackagingTape & Box (TB)
Maximum Temperature-40°C ~ 105°C
Lead Spacing0.197" (5.00mm)
ESR (Equivalent Series Resistance)-
Lifetime @ Temp.-
Mounting TypeThrough Hole
FeaturesGeneral Purpose
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names ECQ B1H123JF3
ECQB1H123JF3
P4583TB ND
P4583TBND
P4583TB
