ECP203

2300 2700 MHz
+32.5 dBm P1dB
+48 dBm Output IP3
10 dB Gain @ 2450 MHz
9 dB Gain @ 2600 MHz
Single Positive Supply (+5V)

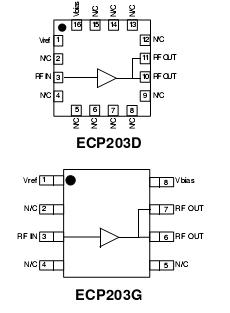

 Available in SOIC-8 or 16pin
   4mm QFN package

The ECP203 is a high dynamic range driver amplifier in a  low-cost  surface  mount  package. The  InGaP/GaAs HBT  is  able  to  achieve  high  performance  for  various narrowband-tuned  application  circuits  with  up  to  +48 dBm OIP3 and +32.5 dBm of compressed 1dB power.  It is  housed  in  an  industry  standard  SOIC-8  or  16-pin 4x4mm QFN SMT package.  All devices are 100% RF and DC tested.

The ECP203 is targeted for use as a driver amplifier in wireless infrastructure where high linearity and medium power is required.  An internal active bias allows the ECP203 to maintain high linearity over temperature and operate  directly  off  a  single  +5V  supply.    This combination makes the device an excellent candidate for driver  amplifier  stages  in  wireless-LAN,  digital multimedia broadcast, or fixed wireless applications.  The device can also be used in next generation RFID readers.
