Features:

* 2300 2700 MHz
* +28 dBm P1dB
* +43 dBm Output IP3
* 13 dB Gain @ 2450 MHz
* Single Positive Supply (+5V)
* Available in SOIC-8 or 16pin
   4mm QFN package


Application

* W-LAN
* RFID
* DMB
* Fixed Wireless


Pinout

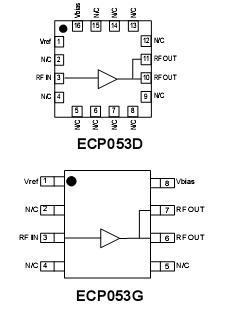

Connection Diagram


Specifications

Operating Case Temperature ........................................... -40 to +85 °C
Storage Temperature  .....................................................-65 to +150 °C
RF Input Power (continuous) .................................................... +28 dBm
Device Voltage ................................................................................ +8 V
Device Current............................................................................  400 mA
Device Power ................................................................................... 2 W


Description

The ECP053 is a high dynamic range driver amplifier in a low-cost surface mount package.  The InGaP/GaAs HBT is able to achieve high performance for various narrowband-tuned application circuits with up to +43 dBm OIP3 and +28 dBm of compressed 1dB power.  It is housed in an industry standard SOIC-8 or 16-pin 4x4mm QFN SMT package.  All devices are 100% RF and DC tested.

The ECP053 is targeted for use as a driver amplifier in wireless infrastructure where high linearity and medium power is required.  An internal active bias allows the ECP053 to maintain high linearity over temperature and operate directly off a single +5V supply.  This combination makes the device an excellent candidate for driver amplifier stages in wireless-LAN, digital multimedia broadcast, or fixed wireless applications.  The device can also be used in next generation RFID readers.
