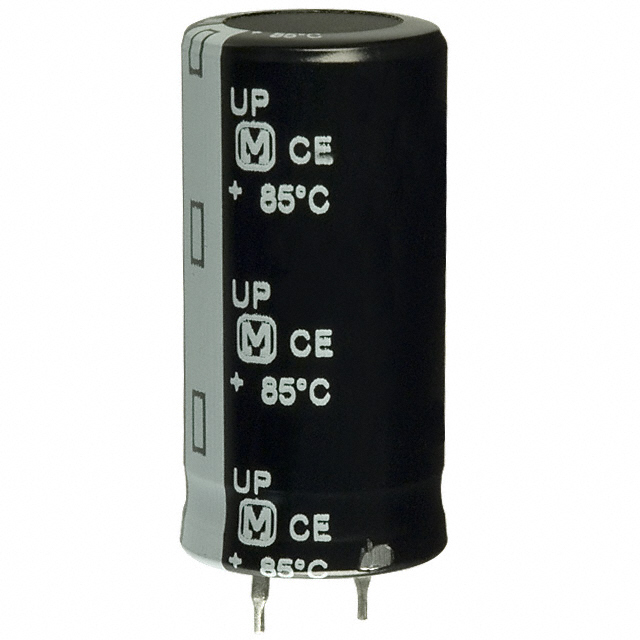

See larger image

SeekIC No. : 002917193 Detail

ECO-S2HP101BA: CAP ALUM 100UF 500V 20% SNAP

ECO-S2HP101BA Data Sheet

Get Latest Price

Part Number:: ECO-S2HP101BA
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

ECO-S0JP273CQ evaluate
US $.88 - 2.05 / Piece

Aluminum Electrolytic Capacitors - Snap In 27KuF 63V
ECO-S1AA103BA evaluate
US $.67 - .69 / Piece

Aluminum Electrolytic Capacitors - Snap In AL Lyt Snap-in TSHA 105C Std Term
ECO-S1AA153BB evaluate
US $1.04 - 1.46 / Piece

Aluminum Electrolytic Capacitors - Snap In AL Lyt Snap-in TSHA 105C Std Term

Product Details

Quick Details

Series:	TS-UP	Manufacturer:	Panasonic Electronic Components
Capacitance:	100µF	Dimensions :	196 mm L x 12.5 mm W
Voltage Rating:	500V	Tolerance:	±20%
Lifetime @ Temp.:	3000 Hrs @ 85°C	Operating Temperature:	-25°C ~ 85°C
Features:	General Purpose	Ripple Current:	990mA
ESR (Equivalent Series Resistance):	1.658 Ohm	Impedance:	-
Mounting Type:	Through Hole	Package / Case:	Radial, Can - Snap-In
Size / Dimension:	0.866" Dia (22.00mm)	Height - Seated (Max):	1.772" (45.00mm)
Lead Spacing:	0.394" (10.00mm)	Surface Mount Land Size:	-

Description

Manufacturer: Panasonic Electronic Components
Tolerance: ±20%
Features: General Purpose
Impedance: -
Mounting Type: Through Hole
Surface Mount Land Size: -
Capacitance: 100µF
Packaging: Bulk
Operating Temperature: -25°C ~ 85°C
Ripple Current: 990mA
ESR (Equivalent Series Resistance): 1.658 Ohm
Package / Case: Radial, Can - Snap-In
Size / Dimension: 0.866" Dia (22.00mm)
Lead Spacing: 0.394" (10.00mm)
Series: TS-UP
Lifetime @ Temp.: 3000 Hrs @ 85°C
Height - Seated (Max): 1.772" (45.00mm)
Voltage Rating: 500V

Parameters:

Technical/Catalog Information	ECO-S2HP101BA
Vendor	Panasonic - ECG
Category	Capacitors
Capacitance	100F
ESR (Equivalent Series Resistance)	1.658 Ohm
Features	General Purpose
Lifetime @ Temp.	3000 Hrs @ 85°C
Maximum Temperature	-25°C ~ 85°C
Size / Dimension	0.866" Dia x 1.772" H (22.00mm x 45.00mm)
Lead Spacing	-
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial (Snap-In)
Packaging	Bulk
Tolerance	±20%
Voltage Rating	500V
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ECO S2HP101BA ECOS2HP101BA P7448 ND P7448ND P7448
