EC4558

Features: Internal frequency compensation Large DC voltage gain with 100 dBtypical Highinputresistance with5M typical Lowinput noise voltage with10nV/ HZ Maximum powersupplyvoltages: 18V Compatible withNJM 4558HZApplicationAudio AC-3decoded systemAudio amplifier PinoutSpecifications Paramet...

product image

EC4558 Picture
See larger image
SeekIC No. : 004331381 Detail

EC4558: Features: Internal frequency compensation Large DC voltage gain with 100 dBtypical Highinputresistance with5M typical Lowinput noise voltage with10nV/ HZ Maximum powersupplyvoltages: 18V Compatibl...

EC4558 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EC4558
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Internal frequency compensation
Large DC voltage gain with 100 dB typical
High input resistance with 5M typical
Low input noise voltage with 10nV/ HZ
Maximum power supply voltages: 18V
Compatible with NJM 4558HZ


Application

Audio AC-3 decoded system

Audio amplifier


Pinout

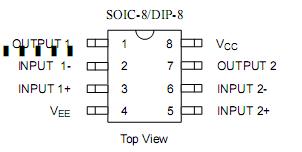

Connection Diagram


Specifications

Parameter Symbol Value Unit
Power Supply Voltage VCC + 18 V
VEE -18
Differential Input Voltage VID ±30 V
Input Voltage VIC ±15 V
Power Dissipation PD DIP       500 mW
SOIC     800
Operating Temperature Range TOP -40 to 85
Storage Temperature Range TSTG -40 to 125



Description

The EC4558 consists of two high performance opera-tional amplifiers. The IC features high gain, high inputresistance, excellent channel separation, wide range of operating voltage and internal frequency compensa-tion. It is specifically suitable for applications in differential-in, differential-out as well as in potential-metricamplifiers and where gain and phase matched channels are mandatory. The EC4558 contains 18Vmaximum power supply voltage.

The EC4558 is available in DIP-8 or SOIC-8 package.
