Product Details

Description

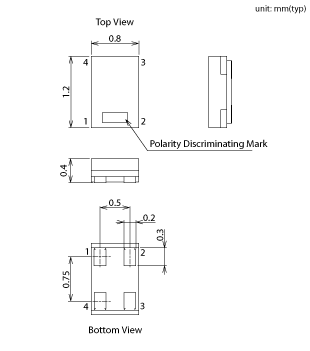

Pinout




Specifications

Absolute maximum ratings
VDSS [V]20
VGSS [V]10
ID [A]1.3
PD [W]0.4
When mounted on glass epoxy substrate
Electrical characteristics
RDS(on) typ [Ω]
VGS=4V		0.17
RDS(on) typ [Ω]
VGS=2.5V
ID [A]=0.3		0.24
RDS(on) typ [Ω]
VGS=1.8V
ID [A]=0.1		0.335
VGS(off) min [V]0.4
VGS(off) max [V]1.3
|yfs| typ [S]1.6
Ciss typ [pF]100
Qg typ [nC]4.5
f [kHz]1100
