EC3592R

‧ 4 wires PS/II interface built-in.
‧ CMOS technology for lower power consumption.
‧ Fully compatible with IBM PS/II series PC.
‧ Supports four working modes: Reset, Stream, Remote and Wrap.
‧ 16 commands plus acknowledgment code.
‧ 7 different sample rates from 10/sec to 200/sec.
‧ 4 different resolutions: 1, 2, 4 and 8 count/mm.
‧ Scaling can be set to 2:1 as specified by IBM spec.
‧ Reduced external component counts by chip integration.
‧ RC oscillation.
‧ Built-in X/Y independent Auto-Ref function (E-CMOS Patented):X/Y threshold voltage level track with input signal dynamically and independently.
‧ High standard ESD and EFT immunity.

Note: This is a stress rating only and functional operation of the device at these or at any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolutemaximum rating may affect device reliability.

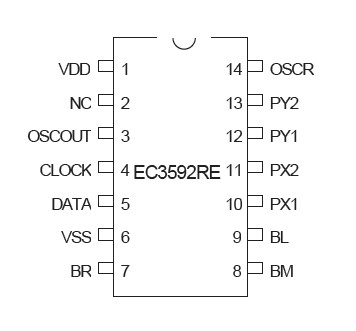

EC3592R is a single chip PS/II Mouse Controller, designed and fabricated in CMOS Technology. The EC3592R is available in 14-pin or 16-pin P-DIP package.
