EA31FS4-F

Features: * TO-252AA Case, Surface Mounting Device* Packaged in 16mm Tape and Reel* Ultra Fast Recovery* Low Forward Voltage drop* Low Power Loss* High Surge Capability* 200 Volts thru 600 Volts Types AvailablePinoutSpecifications Rating Symbol EA31FS4-F Unit Repetitive Peak Revers...

product image

EA31FS4-F Picture
See larger image
SeekIC No. : 004330793 Detail

EA31FS4-F: Features: * TO-252AA Case, Surface Mounting Device* Packaged in 16mm Tape and Reel* Ultra Fast Recovery* Low Forward Voltage drop* Low Power Loss* High Surge Capability* 200 Volts thru 600 Volts Ty...

EA31FS4-F Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EA31FS4-F
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* TO-252AA Case, Surface Mounting Device
* Packaged in 16mm Tape and Reel
* Ultra Fast Recovery
* Low Forward Voltage drop
* Low Power Loss
* High Surge Capability
* 200 Volts thru 600 Volts Types Available

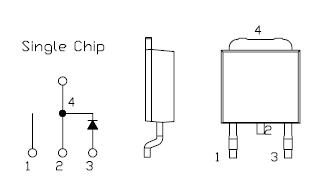

Pinout

Connection Diagram


Specifications

Rating Symbol
EA31FS4-F
Unit
Repetitive Peak Reverse Voltage VRRM
400
V
Non-repetitiv Peak Reverse Voltage VRRM
440
V
Average Rectified
Output Current		 P.C.Board mounted * IO
1.4
Ta=34°C
50Hz Half Sine Wave
Resistive Load
A
-
3.0
Tc=125°C
RMS Forward Current IF(RMS)
4.71
A
Surge Forward Current IFSM
45
50Hz Half Sine Wave,1cycle,
Non-repetitive
A
Operating JunctionTemperature Range Tjw
- 40 to + 150
°C
Storage Temperature Range Tstg
- 40 to + 150
°C
