EA30QS03L

Features: * TO-251AA Case* Extremely Low Forward Voltage drop* Low Power Loss, High Ecciciency* High Surge CapabilityPinoutSpecifications Rating Symbol EA30QS03L Unit Repetitive Peak Reverse Voltage VRRM 30 V Average RectifiedOutput Current P.C.Board mounted * IO 1.7...

product image

EA30QS03L Picture
See larger image
SeekIC No. : 004330781 Detail

EA30QS03L: Features: * TO-251AA Case* Extremely Low Forward Voltage drop* Low Power Loss, High Ecciciency* High Surge CapabilityPinoutSpecifications Rating Symbol EA30QS03L Unit Repetitive Peak ...

EA30QS03L Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EA30QS03L
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* TO-251AA Case
* Extremely Low Forward Voltage drop
* Low Power Loss, High Ecciciency
* High Surge Capability

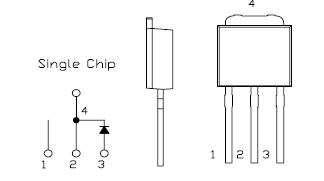

Pinout

Connection Diagram


Specifications

Rating Symbol
EA30QS03L
Unit
Repetitive Peak Reverse Voltage VRRM
30
V
Average Rectified
Output Current		 P.C.Board mounted * IO
1.7
Ta=32°C
50Hz Half Sine Wave
Resistive Load
A
-
3.0
Tc=126°C
RMS Forward Current IF(RMS)
4.71
A
Surge Forward Current IFSM
45
50Hz Half Sine Wave,1cycle,
Non-repetitive
A
Operating JunctionTemperature Range Tjw
- 40 to + 150
°C
Storage Temperature Range Tstg
- 40 to + 150
°C
