DW9268

Features:

·240.192MHz Centre Frequency (fo)
·Low Insertion Loss (8dB maximum)
·3dB Passband 1.3MHz (typical)
·Quartz Temperature Stability
·Low Profile Ceramic LCC Package

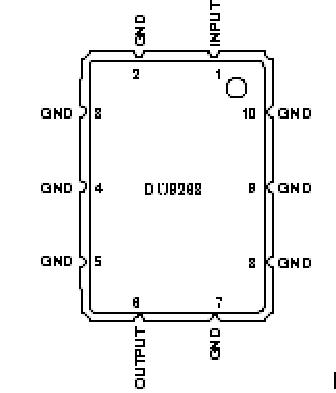

Pinout




Specifications

DC                                           Voltage VDC                   0V
Input Power Max.                                 PIN             10dBm


Description

The DW9268 has been designed specifically for the Digital Cordless Personal Communications market as an IF filter with a centre frequency of 240.192MHz. The filter utilises GPS's low loss (7dB typical), Transversal filter technology based on a Quartz substrate for excellent temperature stability.

A 3dB passband of 1.3MHz (typical) is maintained whilst providing  rejection  to  adjacent  and  alternate  interferers compliant to the DECT Common Interface specification Part 2- The Physical Layer. The device also exhibits excellent close-in and ultimate rejection, which combined with a Group Delay Ripple of 200ns maximum makes the DW9268 and ideal IF filter for Digital Cordless Personal Communications systems.

The  DW9268 device  is  packaged  in  a  surface  mount,  leadless ceramic  chip  carrier,  suited  to  high  volume  automated assembly systems.
