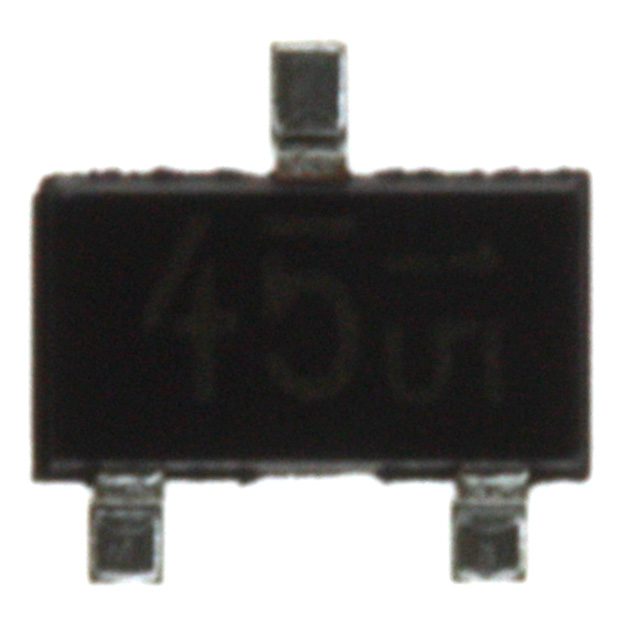

See larger image

SeekIC No. : 00224443 Detail

DTC124XSATP: Transistors Switching (Resistor Biased) NPN 50V 50MA

DTC124XSATP Data Sheet

Get Latest Price

Part Number:: DTC124XSATP
Mfg:: ROHM Semiconductor
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

DTC113ZCA evaluate
DTC113ZCA-TP evaluate
US $.09 - .38 / Piece

Transistors Switching (Resistor Biased) NPN 1KOhms 250MHz
DTC113ZE evaluate

Product Details

Quick Details

Configuration :	Single	Transistor Polarity :	NPN
Typical Input Resistor :	22 KOhms	Typical Resistor Ratio :	0.476
Mounting Style :	SMD/SMT	Package / Case :	SC-72-3
Peak DC Collector Current :	100 mA	Maximum Operating Temperature :	+ 150 C
Packaging :	Ammo

Description

Maximum Operating Frequency :
Collector- Emitter Voltage VCEO Max :
Continuous Collector Current :
Power Dissipation :
Transistor Polarity : NPN
Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT
Typical Input Resistor : 22 KOhms
Peak DC Collector Current : 100 mA
Configuration : Single
Typical Resistor Ratio : 0.476
Packaging : Ammo
Package / Case : SC-72-3

Parameters:

Technical/Catalog Information	DTC124XSATP
Vendor	Rohm Semiconductor
Category	Discrete Semiconductor Products
Transistor Type	NPN - Pre-Biased
Voltage - Collector Emitter Breakdown (Max)	50V
Current - Collector (Ic) (Max)	100mA
Power - Max	300mW
Resistor - Base (R1) (Ohms)	22K
Resistor - Emitter Base (R2) (Ohms)	10K
Vce Saturation (Max) @ Ib, Ic	300mV @ 500A, 10mA
Current - Collector Cutoff (Max)	-
DC Current Gain (hFE) (Min) @ Ic, Vce	68 @ 5mA, 5V
Frequency - Transition	250MHz
Mounting Type	Through Hole
Package / Case	SC-72-3, SPT
Packaging	Tape & Box (TB)
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	DTC124XSATP DTC124XSATP
