DTC114EKA-TP

TRANS PREBIAS NPN 200MW SOT23-3L

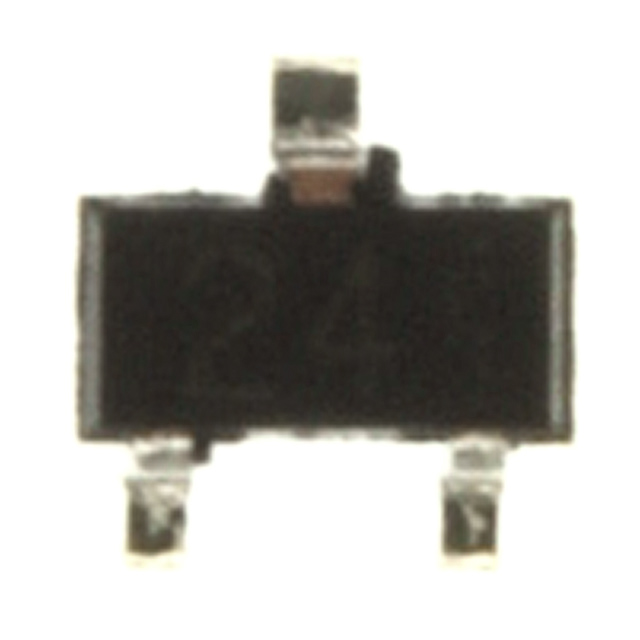

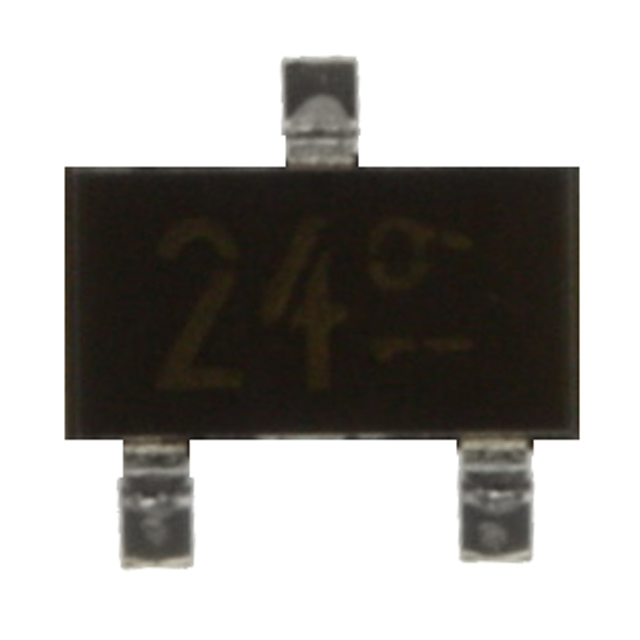

product image

DTC114EKA-TP Picture
SeekIC No. : 003437011 Detail

DTC114EKA-TP: TRANS PREBIAS NPN 200MW SOT23-3L

floor Price/Ceiling Price

Part Number:
DTC114EKA-TP
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: Micro Commercial Co
Transistor Type: NPN - Pre-Biased Current - Collector (Ic) (Max): 100mA
Voltage - Collector Emitter Breakdown (Max): 50V Resistor - Base (R1) (Ohms): 10k
Capacitance : 0.7 pF Resistor - Emitter Base (R2) (Ohms): 10k
DC Current Gain (hFE) (Min) @ Ic, Vce: 30 @ 5mA, 5V Vce Saturation (Max) @ Ib, Ic: 300mV @ 500µA, 10mA
Current - Collector Cutoff (Max): 500nA Frequency - Transition: 250MHz
Power - Max: 200mW Mounting Type: Surface Mount
Package / Case: TO-236-3, SC-59, SOT-23-3 Supplier Device Package: SOT-23-3L

Description

Series: -
Transistor Type: NPN - Pre-Biased
Current - Collector (Ic) (Max): 100mA
Voltage - Collector Emitter Breakdown (Max): 50V
Resistor - Base (R1) (Ohms): 10k
Power - Max: 200mW
Mounting Type: Surface Mount
Packaging: Tape & Reel (TR)
Package / Case: TO-236-3, SC-59, SOT-23-3
Resistor - Emitter Base (R2) (Ohms): 10k
DC Current Gain (hFE) (Min) @ Ic, Vce: 30 @ 5mA, 5V
Vce Saturation (Max) @ Ib, Ic: 300mV @ 500µA, 10mA
Current - Collector Cutoff (Max): 500nA
Frequency - Transition: 250MHz
Manufacturer: Micro Commercial Co
Supplier Device Package: SOT-23-3L


Parameters:

Technical/Catalog InformationDTC114EKA-TP
VendorMicro Commercial Co
CategoryDiscrete Semiconductor Products
Transistor TypeNPN - Pre-Biased
Voltage - Collector Emitter Breakdown (Max)50V
Current - Collector (Ic) (Max)100mA
Power - Max200mW
Resistor - Base (R1) (Ohms)10K
Resistor - Emitter Base (R2) (Ohms)1K
Vce Saturation (Max) @ Ib, Ic300mV @ 500A, 10mA
Current - Collector Cutoff (Max)-
DC Current Gain (hFE) (Min) @ Ic, Vce30 @ 5mA, 5V
Frequency - Transistion250MHz
Mounting TypeSurface Mount
Package / CaseSOT-23-3, TO-236-3
PackagingTape & Reel (TR)
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names DTC114EKA TP
DTC114EKATP
