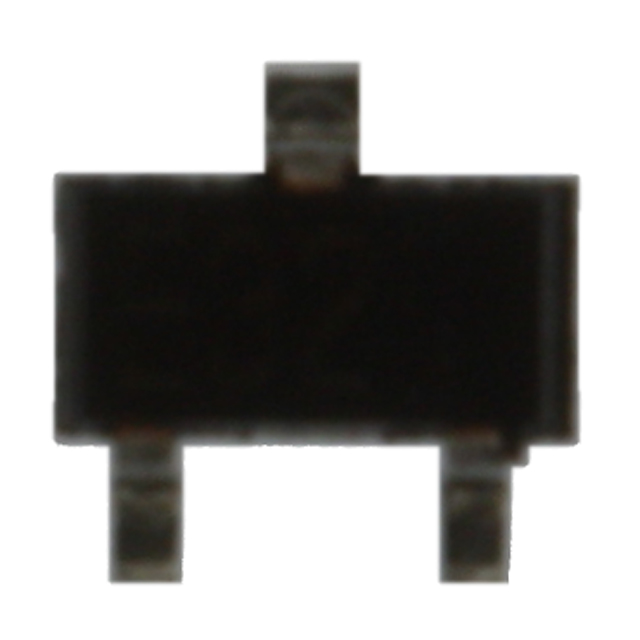

See larger image

SeekIC No. : 003437123 Detail

DTA123JKA-TP: TRANS PREBIAS PNP 200MW SOT23-3L

DTA123JKA-TP Data Sheet

Get Latest Price

Part Number:: DTA123JKA-TP
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

DTA1 evaluate
Features: • Low AC power control use.• Peak OFF-state voltage : 200 to 400V• RMS...
DTA113TKAT146 evaluate
US $.03 - .12 / Piece

Transistors Switching (Resistor Biased) PNP 50V 100MA
DTA113ZETL evaluate
US $.07 - .26 / Piece

Transistors Switching (Resistor Biased) PNP 50V 100MA

Product Details

Quick Details

Series:	-	Manufacturer:	Micro Commercial Co
Transistor Type:	PNP - Pre-Biased	Current - Collector (Ic) (Max):	100mA
Voltage - Collector Emitter Breakdown (Max):	50V	Resistor - Base (R1) (Ohms):	2.2k
Capacitance :	0.7 pF	Resistor - Emitter Base (R2) (Ohms):	47k
DC Current Gain (hFE) (Min) @ Ic, Vce:	80 @ 10mA, 5V	Vce Saturation (Max) @ Ib, Ic:	300mV @ 250µA, 5mA
Current - Collector Cutoff (Max):	500nA	Frequency - Transition:	250MHz
Power - Max:	200mW	Mounting Type:	Surface Mount
Package / Case:	TO-236-3, SC-59, SOT-23-3	Supplier Device Package:	SOT-23-3L

Description

Series: -
Current - Collector (Ic) (Max): 100mA
Voltage - Collector Emitter Breakdown (Max): 50V
Power - Max: 200mW
Mounting Type: Surface Mount
Packaging: Tape & Reel (TR)
Transistor Type: PNP - Pre-Biased
Resistor - Emitter Base (R2) (Ohms): 47k
Package / Case: TO-236-3, SC-59, SOT-23-3
Resistor - Base (R1) (Ohms): 2.2k
Current - Collector Cutoff (Max): 500nA
Frequency - Transition: 250MHz
DC Current Gain (hFE) (Min) @ Ic, Vce: 80 @ 10mA, 5V
Vce Saturation (Max) @ Ib, Ic: 300mV @ 250µA, 5mA
Manufacturer: Micro Commercial Co
Supplier Device Package: SOT-23-3L

Parameters:

Technical/Catalog Information	DTA123JKA-TP
Vendor	Micro Commercial Co
Category	Discrete Semiconductor Products
Transistor Type	PNP - Pre-Biased
Voltage - Collector Emitter Breakdown (Max)	50V
Current - Collector (Ic) (Max)	100mA
Power - Max	200mW
Resistor - Base (R1) (Ohms)	2.2K
Resistor - Emitter Base (R2) (Ohms)	105
Vce Saturation (Max) @ Ib, Ic	300mV @ 250A, 5mA
Current - Collector Cutoff (Max)	-
DC Current Gain (hFE) (Min) @ Ic, Vce	80 @ 10mA, 5V
Frequency - Transistion	250MHz
Mounting Type	Surface Mount
Package / Case	SOT-23-3, TO-236-3
Packaging	Tape & Reel (TR)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	DTA123JKA TP DTA123JKATP
